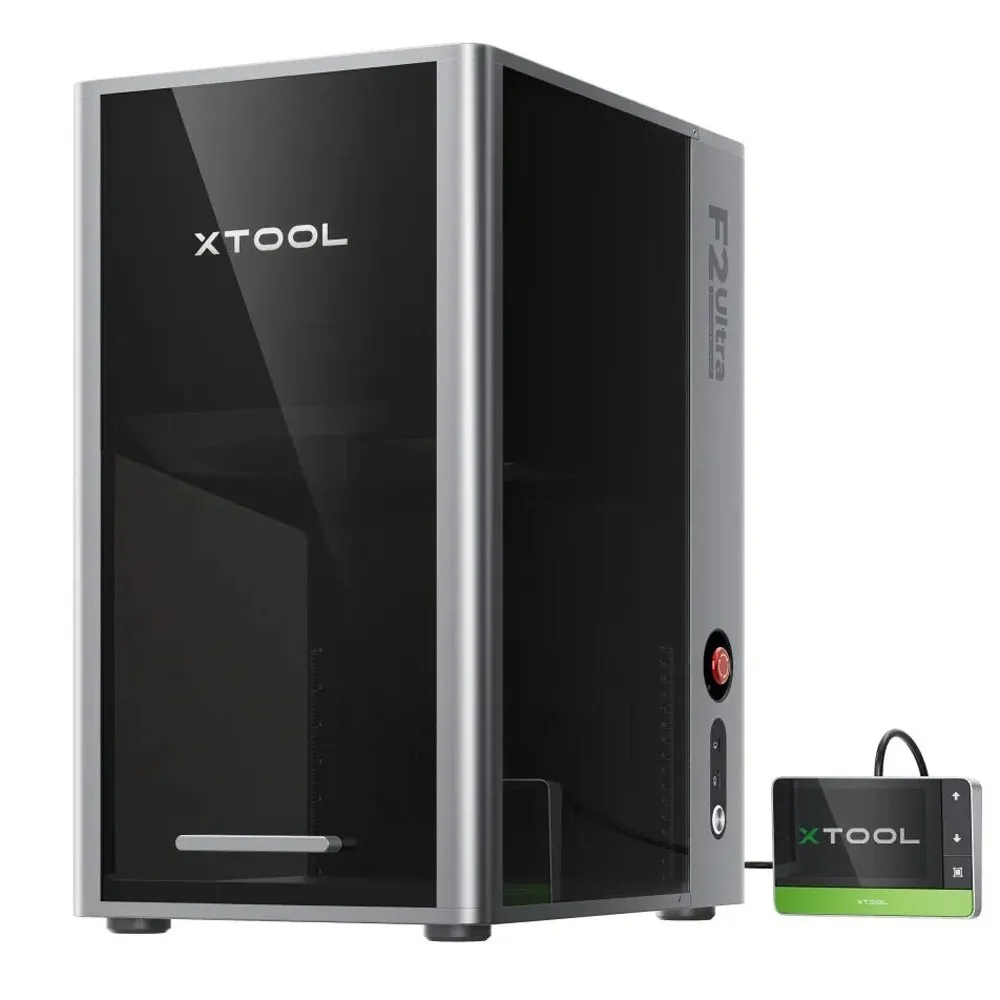

xTool F2 Ultra
首款 60W MOPA + 40W 半导体激光雕刻机
一台强大的机器搞定一切
xTool F2 Ultra 提供更多可能性。60W MOPA 激光能够进行脉冲和频率控制， 随时提供高精度的结果。40W 半导体激光能够更精细地加工非金属材料，并轻松切割较厚的材料。
彩色雕刻变得更加 准确且更简单
借助我们先进的60W MOPA激光，您可以在金属上实现更丰富的色调、更细腻的渐变，甚至全息效果。真正让 xTool 与众不同的是我们精准标定的结构和优质光学系统——旨在尽量降低差异、实现极致的一致性。
深度雕刻更快，细节更加丰富
60W MOPA 激光器能够更快且更深地对金属进行雕刻，产生清晰的纹理和分层浮雕，是低功率激光无法相比的。可调脉宽与频率，赋予你对每个设计的极致细节控制。

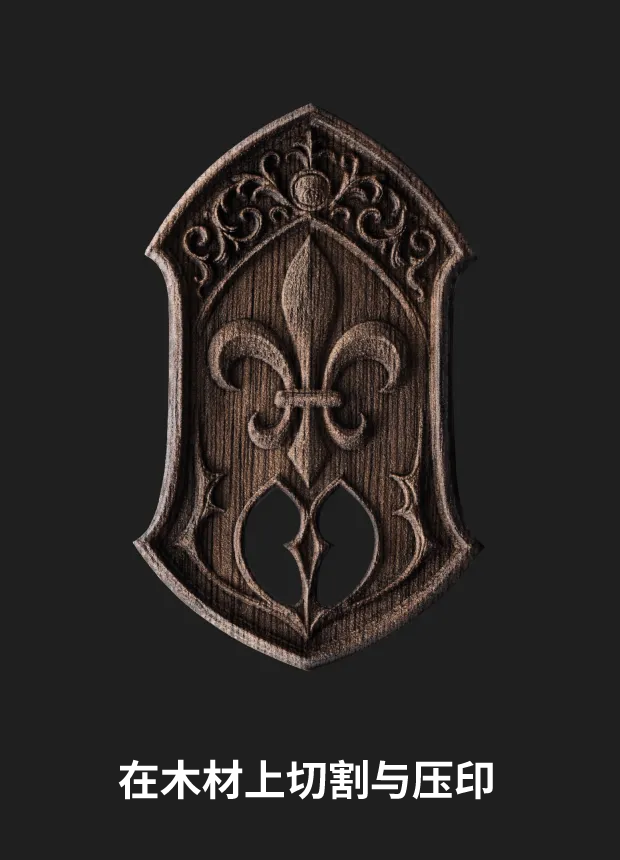

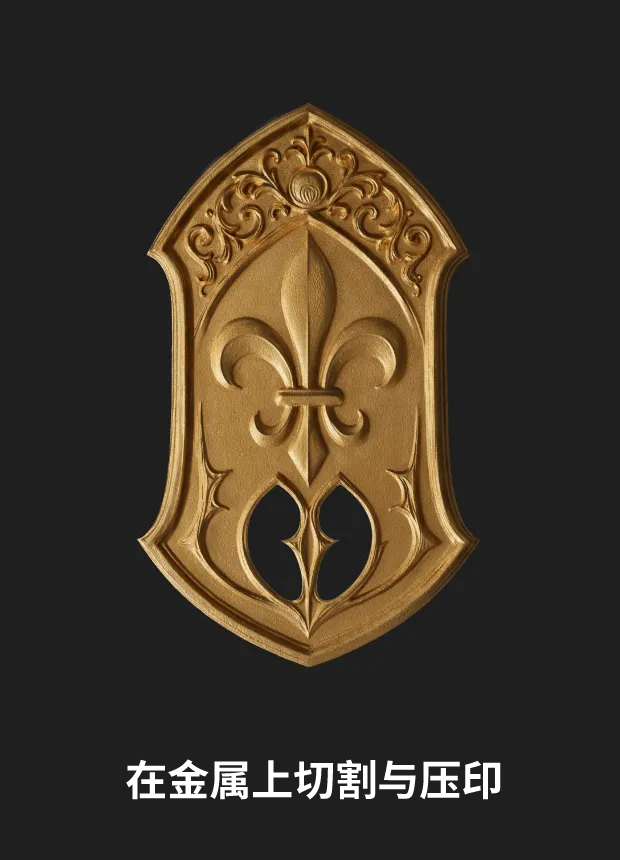

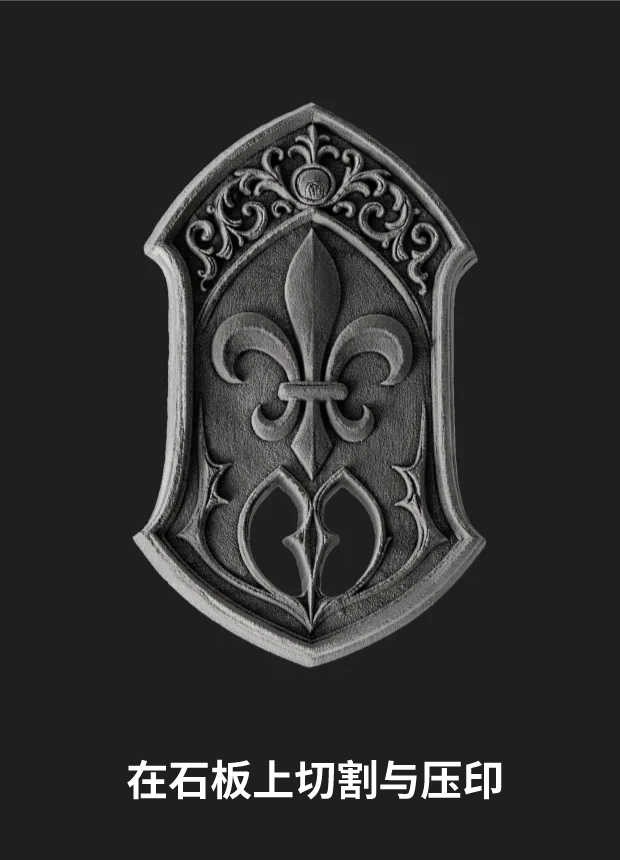

From 2D to 3D, Made for Every Masterpiece
Effortlessly Cutting Through Thicker Materials
AI 驱动 智能化生产解决方案
AI Drives the Entire Process with One Click
From material detection to settings and preview, it simplifies every step for you.
双 AI 摄像头，鹰眼视觉，精度提升 60%
F2 Ultra 的两个 48MP 摄像头将精度提高到 0.2 毫米，比单摄像头系统提高了 60%。
人工智能为您的每一步提供动力
AI颜色识别
上传图片，AI会自动分割颜色，让你快速为每种颜色设置参数。
人工智能设计
AI图像生成有助于在几分钟内将您的文字转换为70+风格，使每个项目真正独一无二。
人工智能建模
智能3D建模可让您轻松准确地雕刻任何形状或尺寸的物体。
参数升级,超快超强 不断打破效率局限
Faster, Create More in Less Time
Larger, Unlock Bigger Project Possibilities
Up to 220 × 220 mm work area, ideal for one-off projects and detailed pieces.
With the conveyor, the bed size expands to 220 × 500 mm, perfect for handling urgent bulk orders on your own.
更智能的批量加工，实现工业级输出
从布局到批量定位，F2 Ultra 依托智能填充功能全面精简流程，确保对大批量订单的持续就绪。

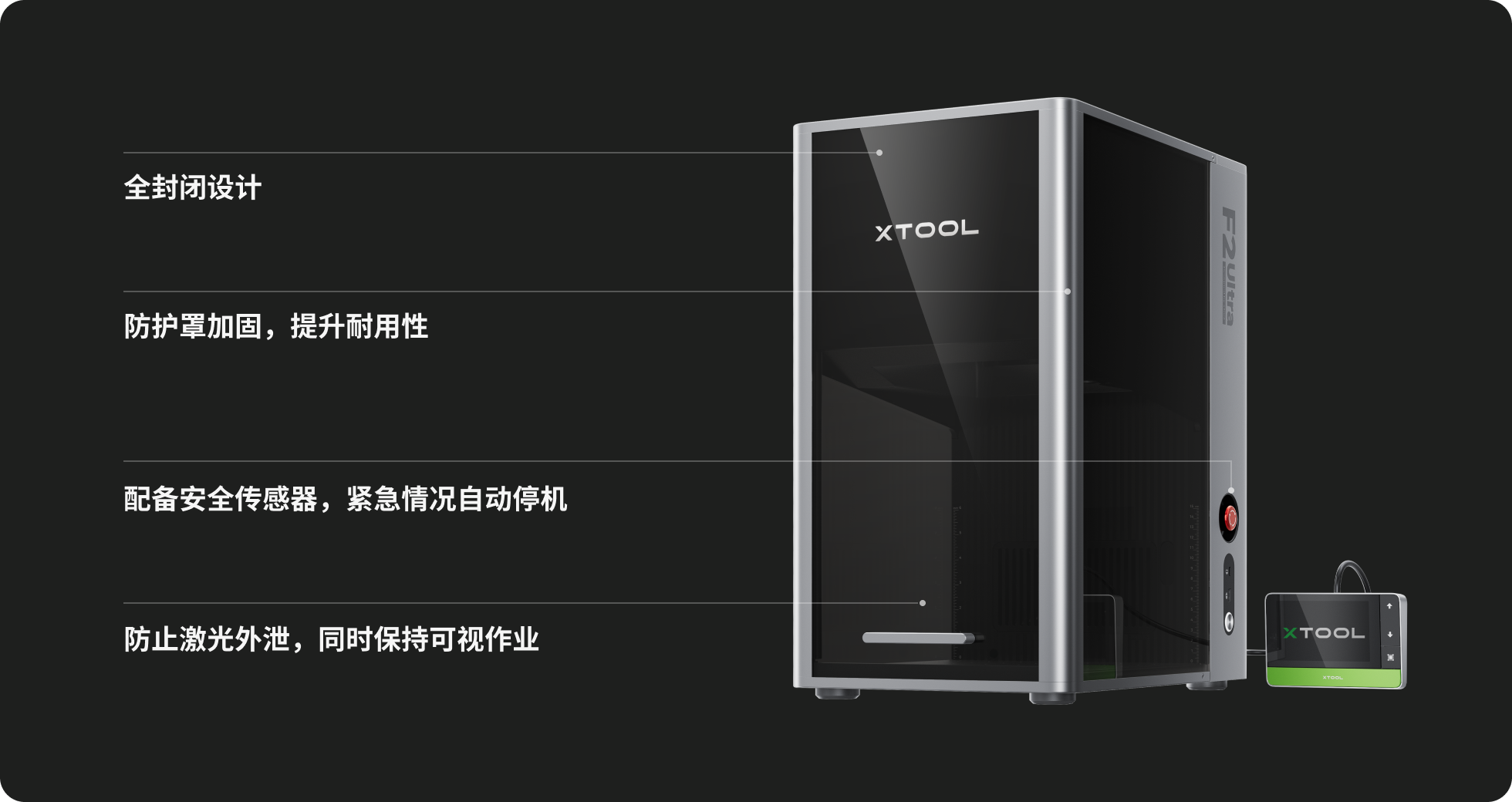

始终安全，维护便捷
预组装
出厂预装，性能更稳，不再担心安装差错。
可拆卸风扇
轻松一键拆卸风扇，无需工具维护。
Specifications | |
|---|---|
| Laser Type | 40W Diode + 60W MOPA Laser |
| Processing Mode | Laser Engraving
Laser Cutting |

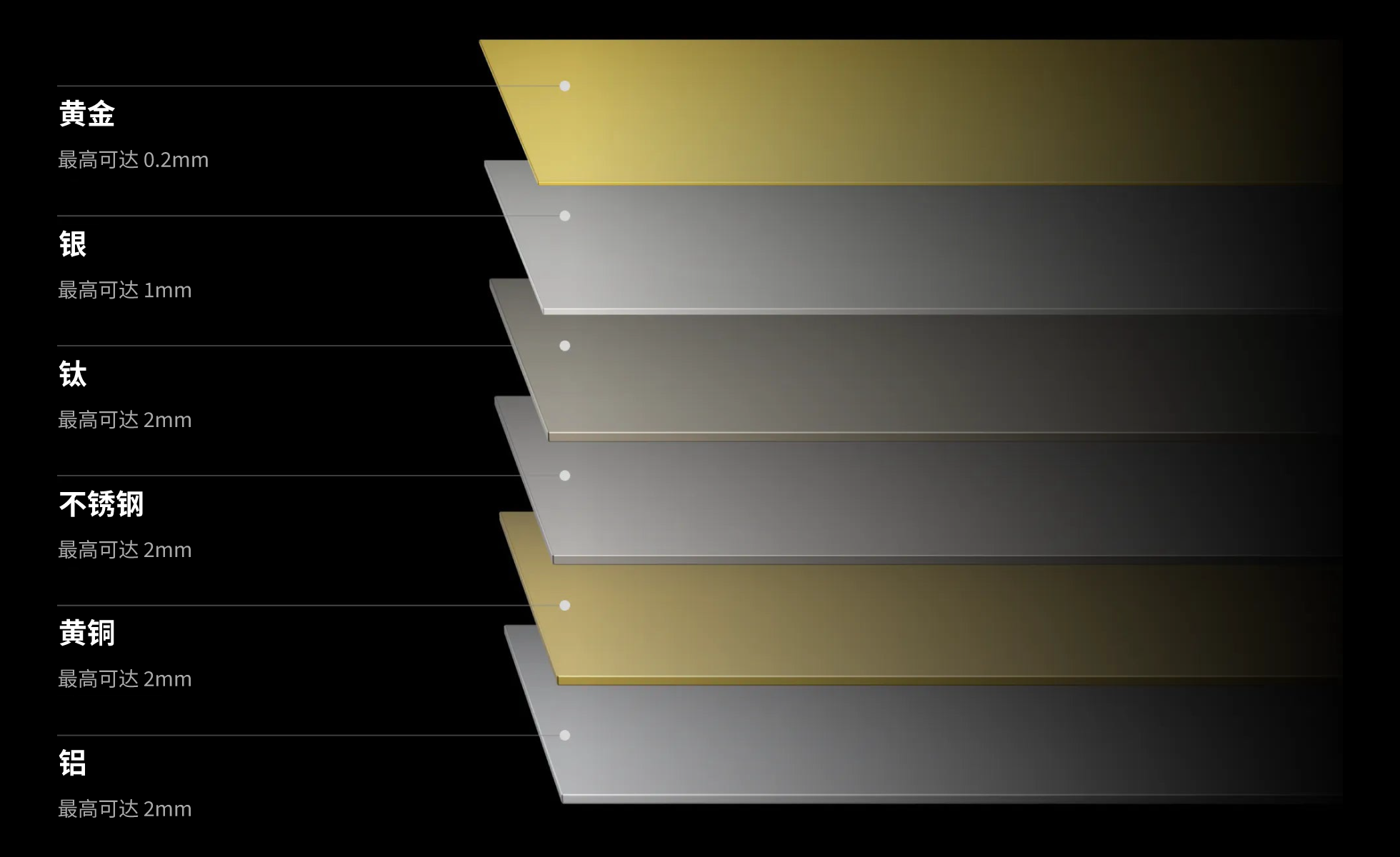

| Supported Materials | Laser Cuttable: Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic MOPA Laser: Brass, Stainless Steel, Aluminum Laser Engravable: Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal MOPA Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area | Fiber Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold
Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal |
| Working Area | 8.6" x 8.6" (220mm x 220mm)
8.6" x 19.6" (with conveyor) (220mm x 500mm） |
| Max. Working Speed | 590.55 ips (15,000mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.91" (23mm) in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 0.79" (20mm) in Multiple Passes |
| Max. Processing Height | 150mm |
| Max. Rotary Engraving Diameter | 150mm |
| Supported Software | xTool Creative Space / Atomm |
Technical Specifications | |
|---|---|
| Operating System | Window / macOS |
| Connection Method | USB / Wi-Fi / IP |
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| AI make Compatibility | Yes |
| Pre-assembled | Yes |
| Built-in Camera | 48 MP Dual Cameras |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | N/A |
| Preview Method | Smart Camera Preview |
Laser & Motion Accuracy Specifications | |
|---|---|
| Laser Spot Size | 0.09*0.1mm (40W Diode Laser)
0.03*0.03mm (60W MOPA Laser) |
| Positioning Precision | 0.2mm |
| Ranging Precision | 0.2mm, Camera |
| Image Resolution | N/A |
| Motion Accuracy | 0.00482mm |
General Information | |
|---|---|
| Safety Certification | Class 4 Laser Safety |
| Product Size | 11.57" x 16.88" x 20.51" (294mm x 429mm x 521mm) |
| Product Weight | 47lb (21.6kg) |
| Max. Machine Input Power | 400W |
| Power Adapter Input Voltage | 100 V - 240V, AC 50/60 Hz |
