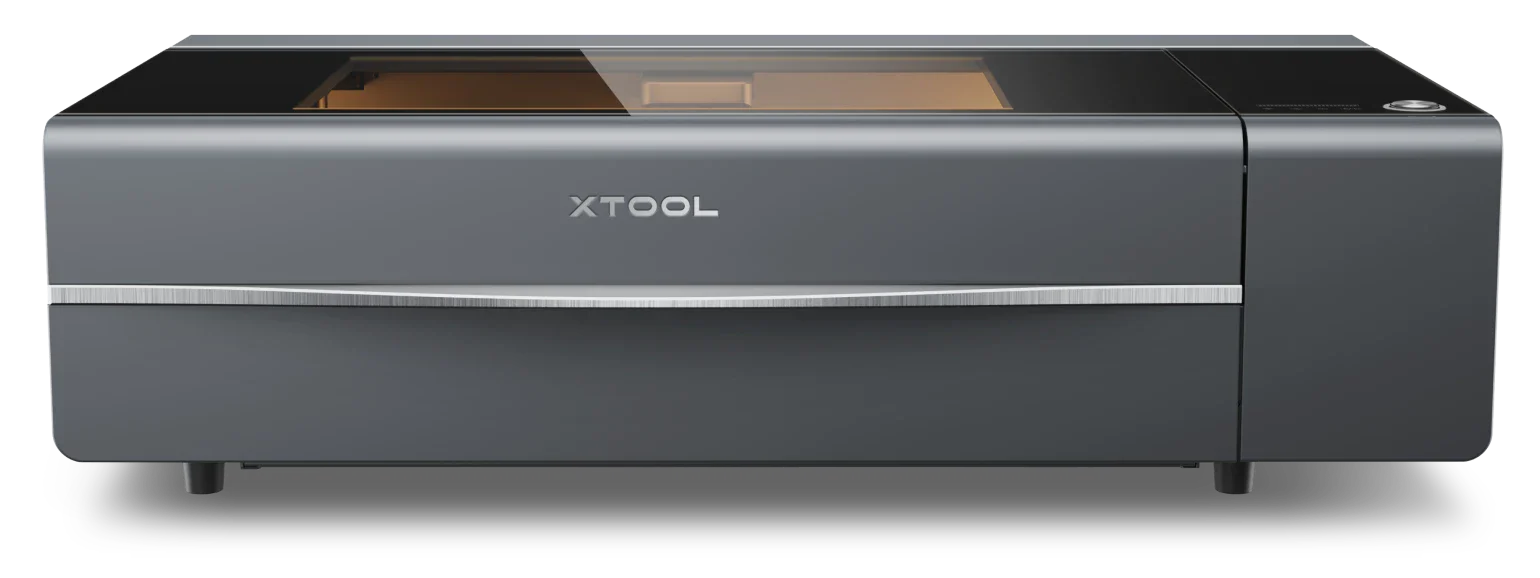

Flagship of Desktop 55W CO2 Laser Cutter
P2S Series Bundle
The xTool P2S can engrave and cut across hundreds of materials. Your Creativity is no longer limited by materials.
The CO2 laser's higher power and superior absorption rate enable it to effortlessly cut through thick materials like 20mm acrylic and 18mm black walnut, along with 100+ other materials in a single pass, achieving the best cutting results.
The xTool P2S boasts an ultra-high dual 16MP resolution. Not only can you preview your overall design in real-time, but you can also see the details on the materials, enusring error-free results.
xTool P2S's 3D Curve Engraving feature automatically creates perfect 3D models, expanding your creative possibilities with a variety of curved materials.
Our AutoPassthrough Technology allows for seamless, precision engraving and cutting on materials up to 118inches long.
Our integrated laser sensing technology (utilizes LiDAR and dGPU) achieves 100% autofocus and maintain distance measurement precision within 0.001", ensuring cut-though every time.
With one click, multiple objects inside the workspace can be automatically recognized and intelligently filled with patterns on them.
Covering all xTool Selected materials, ever-growing, tested across all machines and processing types. Say goodbye to time-consuming testing grids.
Type your words, and watch as AI instantly crafts the visual style you envision.
| xTool P2S | ||
|---|---|---|
| Bed Size | 26.7''×14.1''(680x360mm) | |
| Working Space | 23.6"×12" (600×305mm) | |
| Laser Power | 55W CO₂ Laser | |
| Product Size | 39.4"×25.1"×10.6" (1000×639×268mm) | |
| Product Weight | 45kg | |
| Max. Working Speed | 600mm/s (X-Axis Acceleration 6400mm/s²) | |
| Max. Workpiece Height | With tray 2.5"(64mm), Without tray 2.7"(71mm), With riser base 8.5"(215mm) | |
| Rotary Engraving Diameter | With riser base 0-180mm, Without riser base 3-50mm | |
| Z-Axis Movement | 3"(75mm) | |
| Operating Ambient Temperature | 10-30°C (10-86℉) *If the temperature drops below 10°C (50℉), please add antifreeze under the guidance in the user mannual. | |
| Storage Temperature | 10-45°C (50-113℉) | |

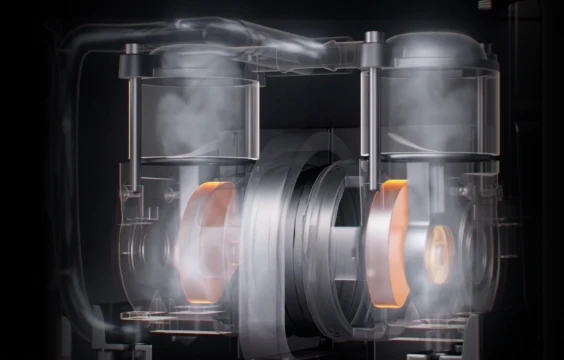

| Air Assist | 200 kPa (Dual Cylinders) | |
| Exhaust Fan | 233.3 CFM(14,000 RPM Dual Blades) | |
| Optical Path Indicator | Included | |
| Daily Maintenance | Quick-Release Fan Button, Magnetic Filter Screen, Mistake-Proof Laser Mirror | |
| Water-Cooling System | Capacity: 1.4L(0.37gal) | |
| Ranging System | LiDAR Ranging System (Processing Precision：0.01mm) | |
| Camera Type | Panoramic Camera + Close-Range Camera | |
| Number of Pixels (Effective) | 16MP×2 | |
| Vision Precision | 0.3mm | |
| Image Resolution | 1000 DPI | |
| Focus Mode | Autofocus | |
| Software | xTool Creative Space / Lightburn | |
| Connection | WiFi & USB | |
| Support File | SVG / DXF / JPG / JPEG / PNG / BMP,etc. | |
| Support Systems | Android / iOS / iPad / Windows / macOS |
