xTool P2S (Mesin xTool)

Pilih Pilihan | Bermula Untuk Pesanan Terus
Kongsi Produk

Jumlah Harga:RM28,137.40
Harga Unit :RM28,137.40

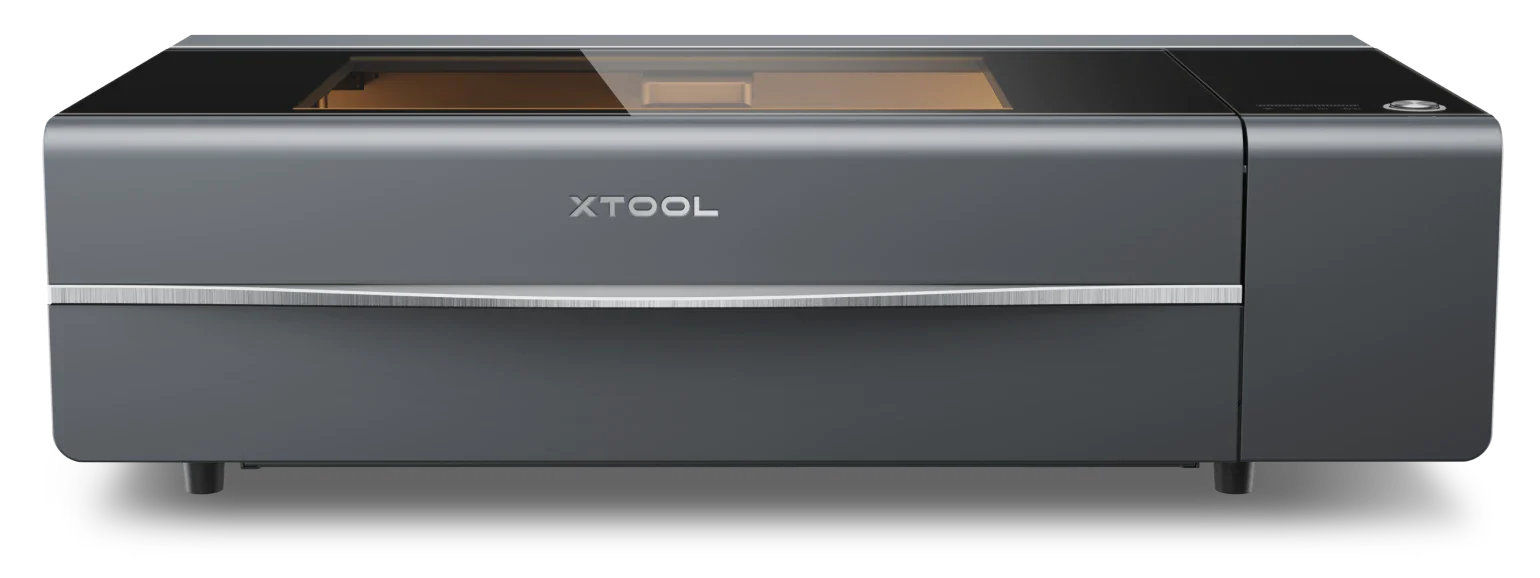

xTool P2S

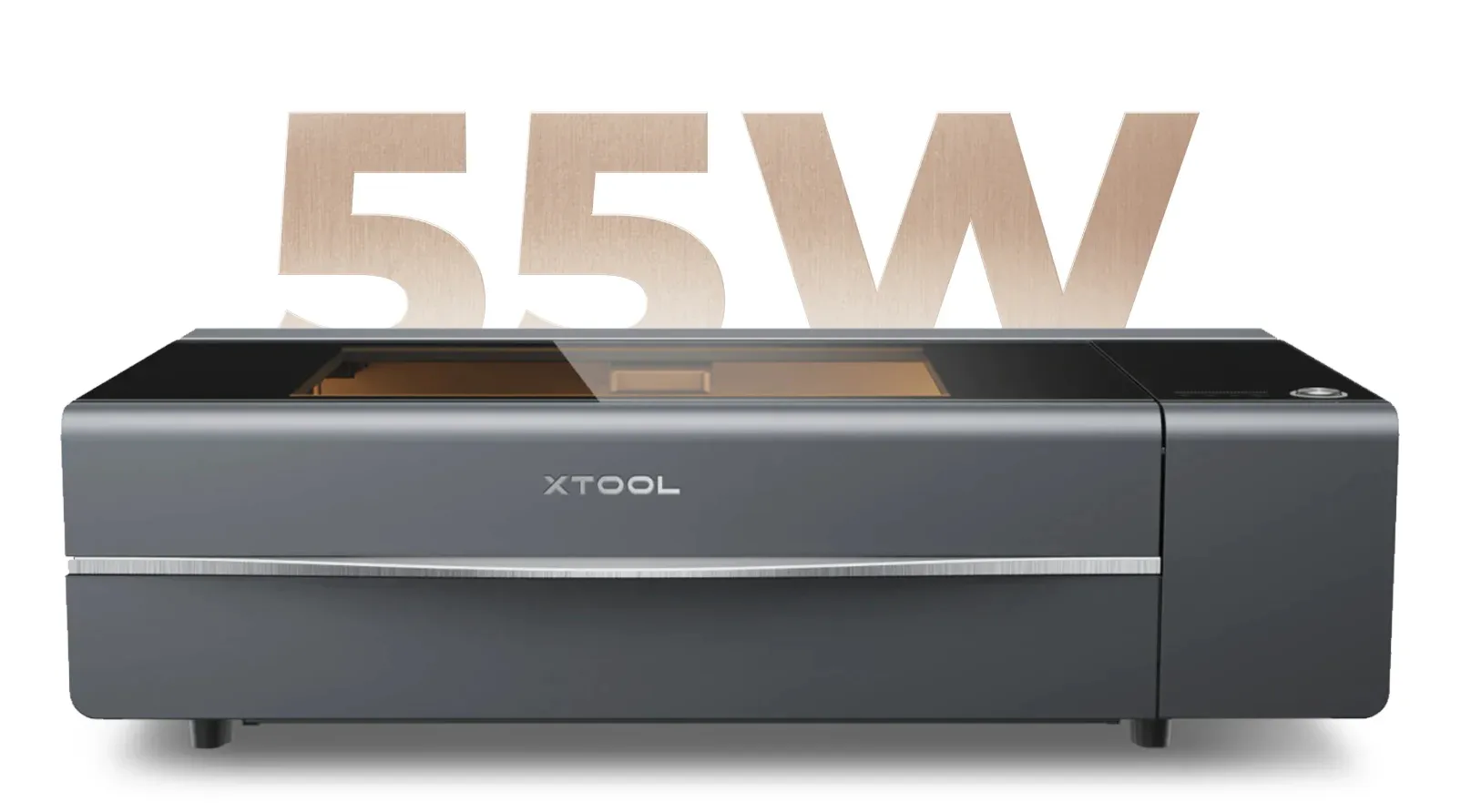

Flagship of Desktop 55W CO2 Laser Cutter






The Ultimate Production Solution For Everyone

Optimized Airflow

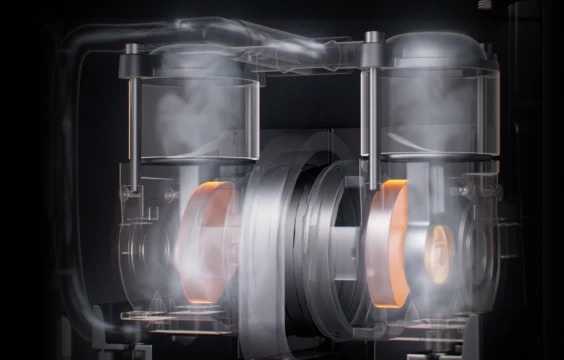

Stronger Exhaust Fan & Air Pump

Easy Maintenance

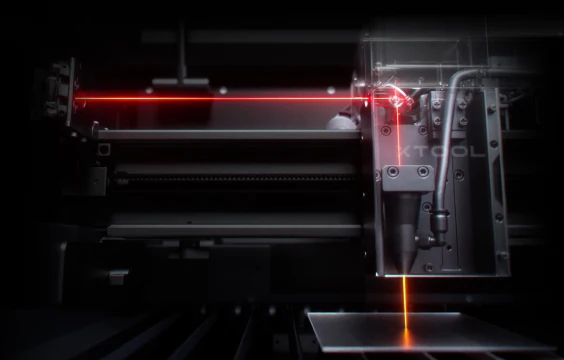

Optical Path Solution & Routine Cleaning

New Features

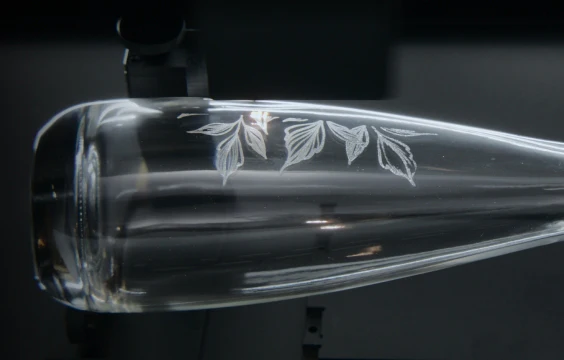

3D Cylinder Engraving & Batch Processing 2.0



Materials Unlocked, Creativity Unbounded

The xTool P2S can engrave and cut across hundreds of materials. Your Creativity is no longer limited by materials.

Wood

Leather


Coated Metal

Glass

Rock

Others



Game-Changing Efficiency

with Your Personal Factory

As a daily tool, product performance becomes particularly important. The xTool P2S boasts a leading 55W output and a large work area, perfect for handling diverse projects with ease.

Max

600mm/s

engraving speed


Up to

500% faster

cutting on materials*

*According to xTool lab test data, the xTool P2S cuts 500% faster than other 40W diode laser machines.

Up to

26 x 14 inches

bed size


Up to

37% output

for enhanced performance*

*Compare to the Laser Box, the xTool P2S has a 37% increase in output.

Cut Through Thick Materials Like Butter

The CO2 laser's higher power and superior absorption rate enable it to effortlessly cut through thick materials like 20mm acrylic and 18mm black walnut, along with 100+ other materials in a single pass, achieving the best cutting results.

Unveil the Distinct Features (Dual HD Camera)
Accurate
                    Positioning of Tiny Objects
The xTool P2S boasts an ultra-high dual 16MP resolution. Not only can you preview your overall design in real-time, but you can also see the details on the materials, enusring error-free results.

 3D Curve
                    Engraving
Engrave with Ease for Flawless Results on Curved Surfaces
xTool P2S's 3D Curve Engraving feature automatically creates perfect 3D models, expanding your creative possibilities with a variety of curved materials.
 AutoPassthrough
                    Technology
Process Materials Up to 118 Inches Automatically
Our AutoPassthrough Technology allows for seamless, precision engraving and cutting on materials up to 118inches long.
 LiDAR Ranging
                    System
Autofocus with 0.001" Precision for Perfect Cuts Every Time
Our integrated laser sensing technology (utilizes LiDAR and dGPU) achieves 100% autofocus and maintain distance measurement precision within 0.001", ensuring cut-though every time.
 Smart Fill System
Fast & Efficiency
With one click, multiple objects inside the workspace can be automatically recognized and intelligently filled with patterns on them.


As Simple as 1-2-3
Transform your ideas into amazing works with a process that's surprisingly straightforward and simple.


Set Your Materials Without Testings
Covering all xTool Selected materials, ever-growing, tested across all machines and processing types. Say goodbye to time-consuming testing grids.
No ideas? Use AI Design
Type your words, and watch as AI instantly crafts the visual style you envision.
Specifications

Processing Capcity
Laser Type55W CO2 Laser
Processing ModeLaser Cutting

Laser Engraving
Supported MaterialsLaser Cuttable: Wood, Acrylic, Fabric, Leather

Laser Engravable: Metal, Glass, Bamboo, Ceramic View 300+ Compatible Materials.
Working Area23.6" x 12" (600 mm x 305 mm)
Max. Working Speed23.6 ips (600 mm/s), X-axis Acceleration 6400 mm/s²
Max. Laser Cutting Capacity (Basswood)0.71" (18 mm) in ONE PASS
Max. Laser Cutting Capacity (Acrylic)0.79" (20 mm) in ONE PASS
Max. Processing HeightWith riser base: 8.46" (215 mm)

With tray: 2.52" (64 mm)

Without tray: 2.80" (71 mm)
Max. Rotary Engraving DiameterWith riser base: 0 - 7.09" (0 - 180 mm)

Without riser base: 0.12 - 1.97" (3 - 5 mm)
Smart Software
Supported SoftwarexTool Studio
Operating SystemWindows / macOS
Connection MethodUSB / Wi-Fi
Supported FilesSVG / DXF / JPG / JPEG / PNG / BMP / TIF
AImake CompatibilityYes
Easy Operation
Pre-assembledYes
Built-in Camera16 MP Close-range Camera + 16 MP Panoramic Camera
Positioning MethodDual-Camera Positioning
Focus ModeAutofocus
Ranging SystemLiDAR Ranging System
Preview MethodSmart Camera Preview
Accuracy & Precision
Laser Spot Size0.0059" x 0.0079" (0.15 mm x 0.2 mm)
Positioning Precision0.3mm, Camera
Ranging Precision0.3mm, Camera
Image Resolution1000 DPI
Motion Accuracy0.00059" (0.015 mm)
General Information
Safety CertificationClass 4 Laser Safety
Product Dimensions39.4" x 25.1" x 10.6" (1000 mm x 639 mm x 268 mm)
Product Weight99.21 lb (45kg)
Max. Machine Input Power700 W
Power Adapter Input Voltage100 V - 120 V, AC 50/60 Hz
