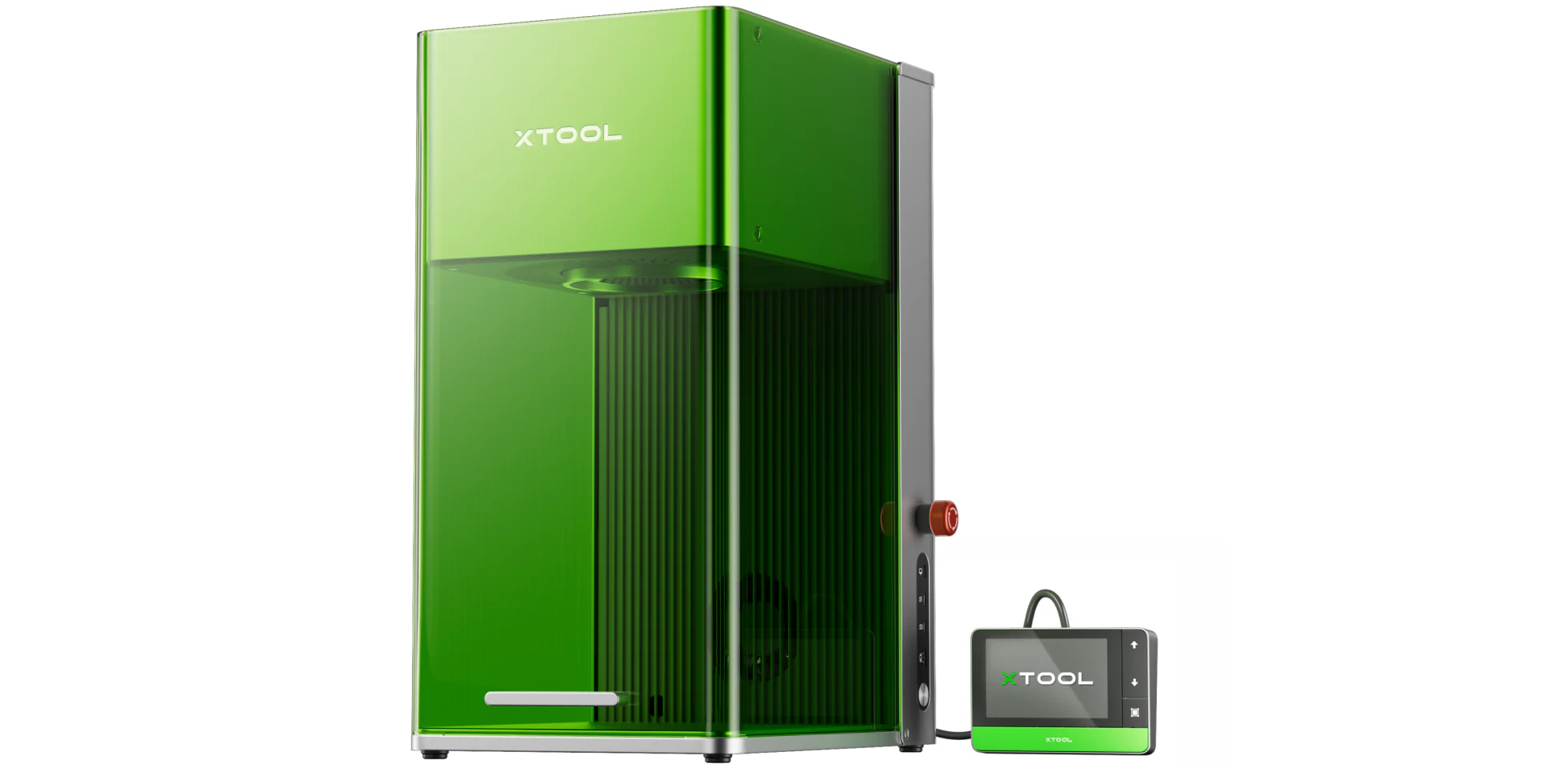

xTool F1 Ultra (xTool Machines)
xTool F1 Ultra
World's First 20W Fiber & 20W Diode Laser Engraver
Compare xTool F-Series Laser Engravers
Best for Scaling & Faster Production
Best Value All-Rounder for Metal Jewelry & More
20W Fiber & 20W Diode Dual Laser
Smart Camera
10,000 mm/s
Colour Engraving
Pro-Grade MOPA Dual-Laser for Metalwork
60W MOPA & 40W Diode Dual Laser
Dual 48MP Cameras
15,000 mm/s
Colour Engraving
Ultra-Precise UV Laser for Glass & Fine Details
25W UV Laser
Dual 48MP Cameras
15,000 mm/s
Inner Engraving
Still Unsure? Choose Based on Your Scenario
Five Minutes. Same Pattern. Different Results.
Processing under the recommended parameters of xTool Studio. Efficiency and marking results differ by model.
See the Extreme Engraving Effect. Match Your Needs.
Only selected F-Series models can perform 3D embossing. The key difference is engraving power and production efficiency.
From Muted to Magnificent. Find Your Perfect Hue.
Colour engraving results vary by laser model and processing parameters.
Different Power. Clear Differences in Metal Cutting.
Cutting limits by model: F2 Ultra can cut thicker metal, while F1 Ultra supports thin metal cutting such as 0.4mm brass, 0.3mm stainless steel and 0.2mm aluminium.
Surface to Inner Engraving, Explore Every Possibility.
Different F-Series laser models perform differently on transparent glass, surface engraving and internal engraving applications.
More Material & Process Comparisons at a Glance
The Ultimate Production Solution for Everyone
Jewelry StoreDeep-Engrave Jewelry
Create stunning jewellery with deep metal engraving, embossing and thin metal cutting.
EventsOnsite Customising
Create personalised items quickly for events, pop-up booths and live customisation services.
Work SpaceStreamline Your Production
Use smart production workflow to process batches efficiently for business and workshop use.
Souvenir ShopMake All Types of Gifts
Work on over 300 materials to create personalised gifts, souvenirs and branded products.

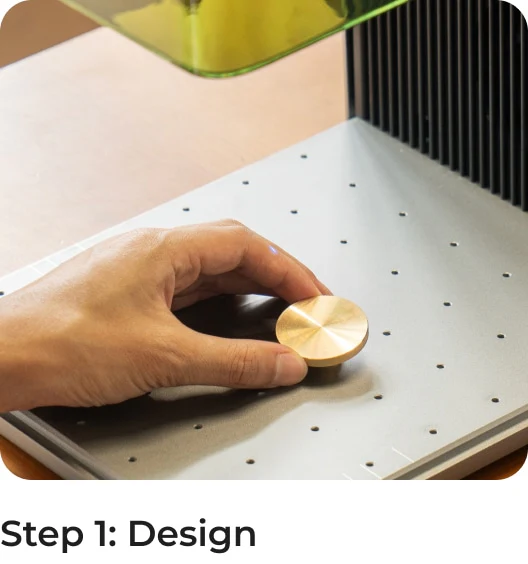

Create Like a Pro in Just 3 Steps
Work on Almost
All Materials
World's First 20W Fiber &
20W Diode Dual Laser
xTool F1 Ultra combines two laser sources in one compact machine: a fiber laser for metal engraving and a blue diode laser for common materials such as wood, leather, acrylic and more.
20W Power Beast,
Make Your Masterpiece
With 20W fiber laser and 20W diode laser power, F1 Ultra supports deep engraving, embossing, relief engraving and selected cutting applications on metal, wood, acrylic and more.

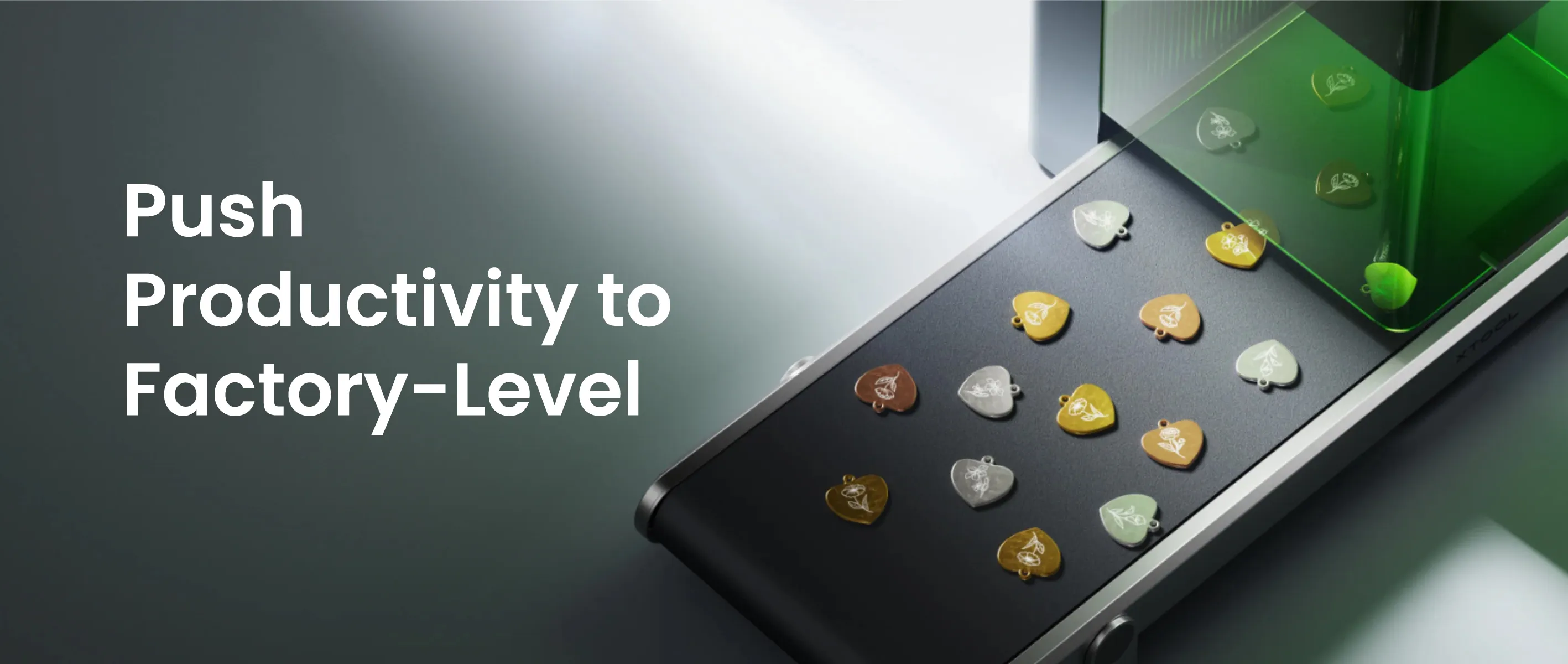

Auto Streamline™
Your Production
Handle higher production quantities more efficiently when large orders are in rush.

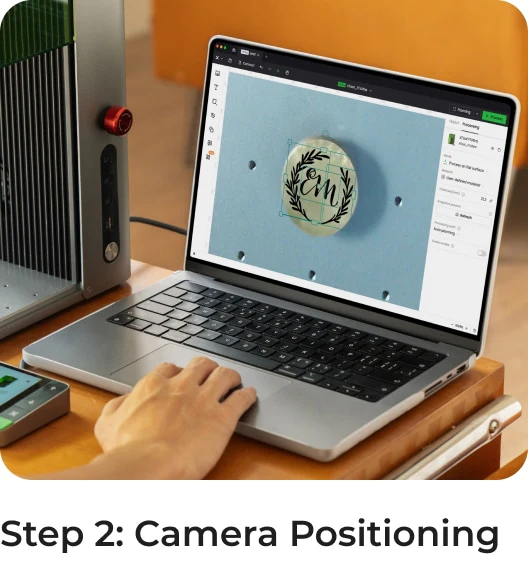

Camera Made
Production Easy
Place materials on the conveyor and let the camera help identify material placement. xTool Creative Space helps position engraving patterns accurately.
Innovation Expands
Engraving Boundaries
Detailed Results in a Large Desktop Fiber Laser
Break Through
Technology Limits
Advanced optical path design helps expand the working area while maintaining engraving detail and precision.
Expand Engraving on Curved Objects
Directly Engrave on
Curved Surfaces
xTool 3D Curve™ Engraving helps create a 3D model for curved surfaces so patterns can be engraved more accurately.
Support Cylinder
Engraving
The RA3 smart 4-in-1 rotary supports different rotary modes for engraving tumblers, mugs, Christmas balls, rings and other cylindrical or rounded objects.

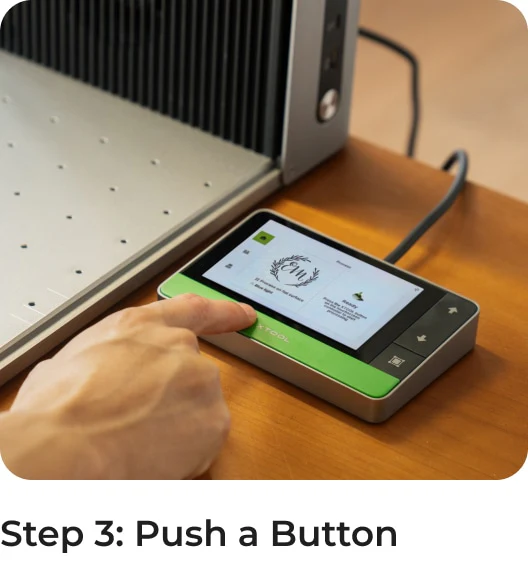

Create with
Control Panel
The F1 Ultra touch control panel stores project files and can control engraving or cutting without relying only on a computer.
In the Box
Specifications
Processing Capability
| Laser | 20W Blue Diode Laser + 20W Fiber Laser |
| Processing Mode | Laser Engraving / Laser Cutting |
| Supported Materials | Laser Cuttable: Diode Laser: paper, wood, leather, MDF, felt and selected dark opaque acrylic. Fiber Laser: brass, stainless steel and aluminium. Laser Engravable: Diode Laser: paper, wood, leather, MDF, stainless steel, selected dark opaque acrylic, bamboo, fabric, dark glass, ceramic, jade, marble, shale, cement, brick, plated metal and painted metal. Fiber Laser: stainless steel, aluminium, brass, silver, plastic, platinum, titanium and gold. |
| Working Area | 220mm × 220mm / 220mm × 500mm with conveyor |
| Maximum Working Speed | 10,000mm/s |
| Maximum Cutting Capacity | Basswood up to 15mm in multiple passes / Acrylic up to 12mm in multiple passes |
| Maximum Processing Height | 145mm |
| Maximum Rotary Engraving Diameter | 145mm |
Smart Software
| Supported Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection Method | USB / Wi-Fi / Hotspot |
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| AImake Compatibility | Yes |
Easy Operation
| Pre-Assembled | Yes |
| Built-in Camera | 16MP Smart Camera |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Preview Method | Smart Camera Preview / High-Speed Light Live Preview |
Accuracy & Precision
| Laser Spot Size | 0.08 × 0.1mm for 20W diode laser / 0.03 × 0.03mm for 20W fiber laser |
| Ranging Precision | 0.5mm, camera |
| Motion Accuracy | 0.00482mm |
General Information
| Safety Certification | Class 4 Laser Safety |
| Product Size | 273mm × 373mm × 492mm |
| Product Weight | 14.7kg |
| Maximum Machine Input Power | 250W – 275W |
| Power Adapter Input Voltage | 100V – 240V, AC 50/60Hz |
