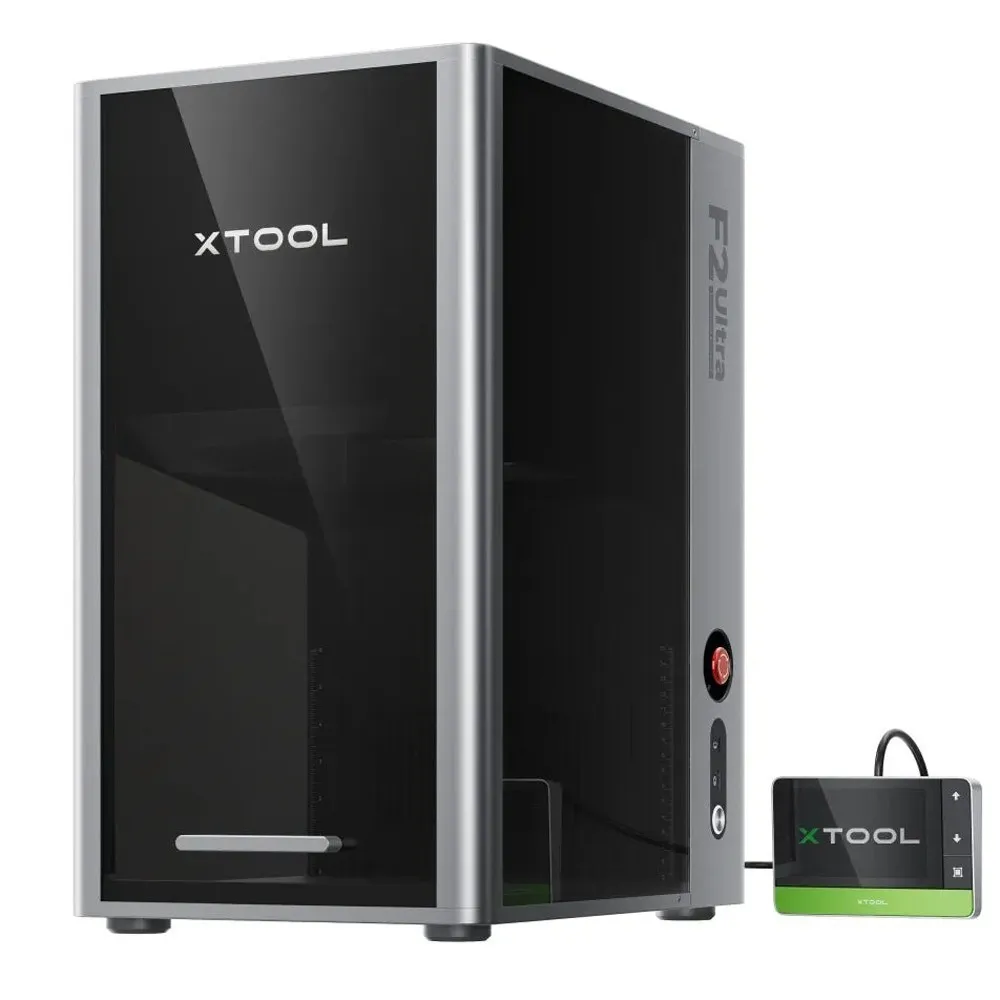

xTool F2 Ultra
The First 60W MOPA + 40W Diode Dual Laser with AI
Best for Scaling & Faster Production
Best Value All-Rounder for Metal Jewelry & More.
20W Fiber & 20W Diode Dual Laser
Smart Camera
10,000 mm/s
Color Engraving
Pro-Grade MOPA Dual-Laser for Metalwork.
60W MOPA & 40W Diode Dual Laser
Dual 48MP Cameras
15,000 mm/s
Color Engraving
Ultra-Precise UV Laser for Glass & Fine Details.
25W UV Laser
Dual 48MP Cameras
15,000 mm/s
Inner Engraving
Still Unsure? Choose Based on Your Scenario
Five Minutes. Same Pattern. Different Results.
Processing under the recommended parameters of xTool Studio. Their efficiency and marking results are different.
See the Extreme Engraving Effect. Match Your Needs.
Only F2 Ultra and F1 Ultra can perform 3D embossing. The key difference is engraving power and efficiency.
From Muted to Magnificent. Find Your Perfect Hue.
Color results from most vivid to less: F2U>F1U
Different Power. Clear Differences in Metal Cutting.
Cutting limits by model: F2 Ultra (2 mm brass / stainless steel / aluminum) > F1 Ultra (0.4 mm brass, 0.3 mm stainless steel, 0.2 mm aluminum) > F2 & F2 Ultra UV (no metal cutting).
Surface to Inner Engraving, Explore Every Possibility.
F2 Ultra UV excels at glass with crisp surface marks and stunning 3D internal engraving, delivering the highest clarity and consistency. Other F-series models are limited to surface engraving, and their results on transparent glass are noticeably less clear.
More Material & Process Comparisons at a Glance
Why MOPA Is the Professional Choice in Metal Work
Powered by MOPA, xTool F2 Ultra delivers a more versatile metal processing experience beyond ordinary fiber lasers.
Color Engraving
With its wider pulse and frequency range, MOPA makes it easy to engrave hundreds of vibrant colors on metal, boosting your product value.
True Black Marking
MOPA can precisely control pulse width and frequency to engrave deep black marks in fewer passes—no marking spray needed like fiber.
Faster 3D Engraving

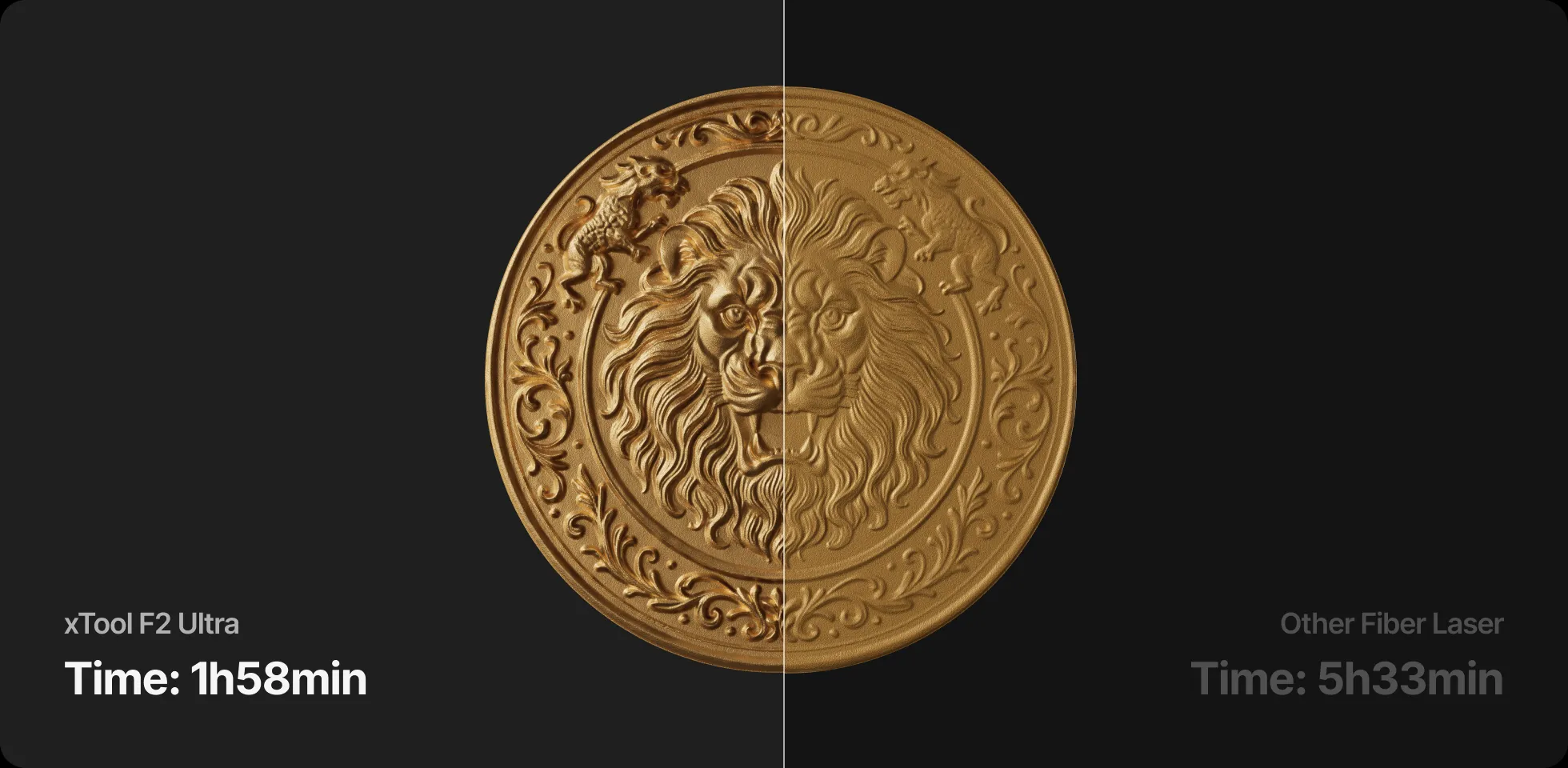

60W MOPA engraves 3D metal coins 5× faster than 20W fiber, helping you finish orders quickly and achieve faster payback.
Metal Cutting
With higher power, you can cut thicker metal and turn it into premium products for new markets—a 4mm name necklace takes just 6 minutes.
Where F2 Ultra Outperforms
Competitors
Camera Preview
Dual 48MP cameras with 0.2mm accuracy enable precise preview before engraving, avoiding errors and material waste.

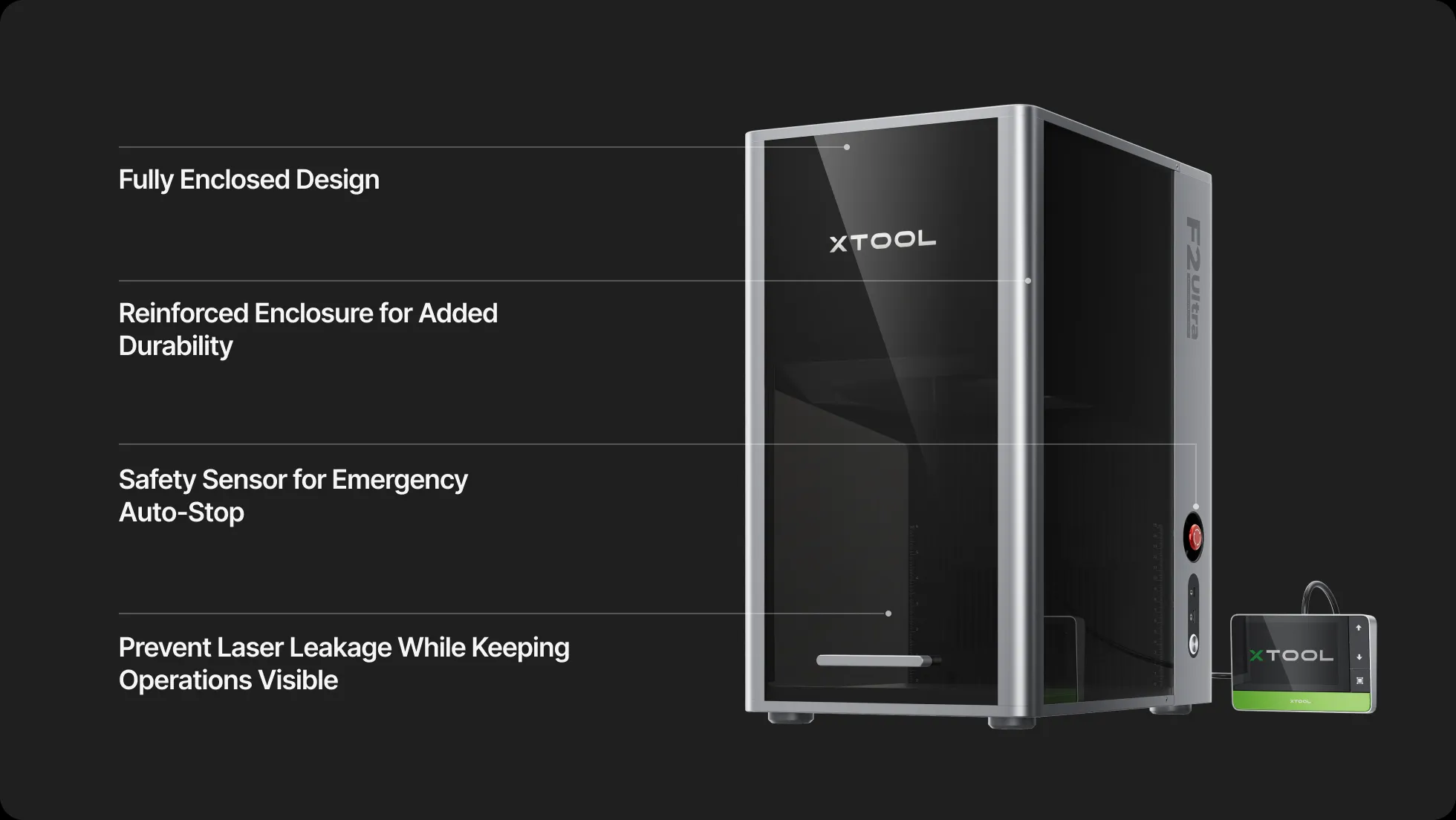

Safety by Full Enclosure
The fully enclosed design effectively blocks laser leakage and smoke, ensuring a safe, worry-free working environment from workshops to retail stores and events.
Smart Software
With hundreds of built-in material presets and AI auto-recognition, we help you cut down on testing, minimize material waste, and speed up order delivery.
Local Service
Trusted product quality and local service teams back you up, so you can focus on business growth.
One Powerful Machine Does It All
xTool F2 Ultra offers more possibilities. The 60W MOPA laser enables pulse and frequency control for high-precision results, while the 40W diode laser delivers finer processing on non-metal materials and effortless cutting of thicker materials.
Color Engraving Becomes More
Accurate and Easier
With our advanced 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What truly sets xTool apart is our precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.
100+ Vibrant Colors, Remarkably Consistent
Delivers over 100 consistent colors on stainless steel and titanium, spanning 7 color spectrums and taking your designs far beyond black and white.
Get Your Color Palette in One Click
Pre-set color files in XCS let anyone create a personal color palette and easily find the right settings for any color.
Deep Engraving Done Faster, with More Detail
60W MOPA cuts metal faster and deeper, creating crisp textures and layered reliefs that lower-power lasers can't match. Adjustable pulse width and frequency give you precise control to reveal the finest details in every design.
From 2D to 3D, Made for Every Masterpiece
Effortlessly Cutting Through Thicker Materials

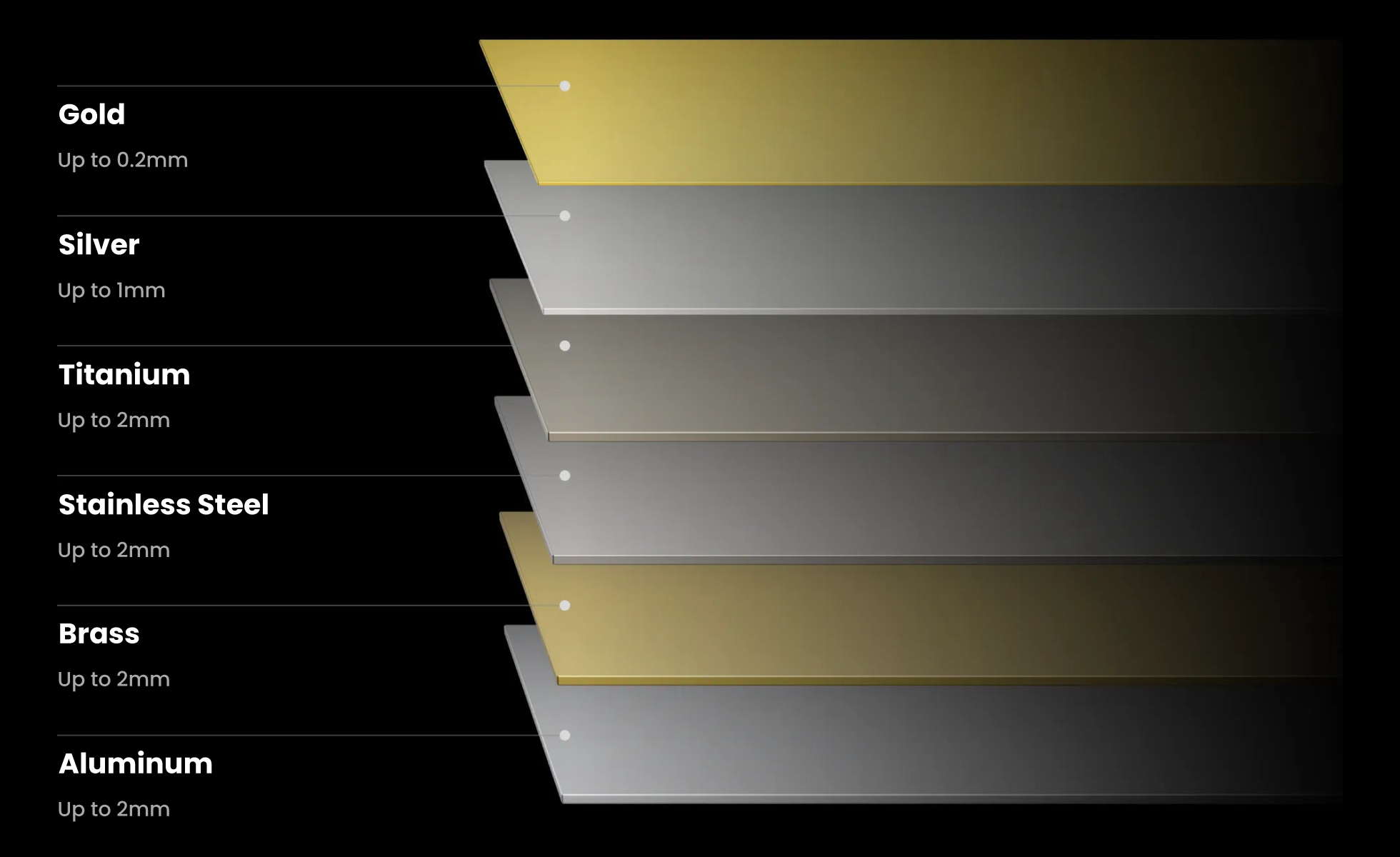

Max Metal Cutting Capability
The cutting results shown are based on tests in the xTool Lab. To learn more about the recommended laser settings, visit Atomm or contact our support specialists.
*Laser engraving is subtractive, so precious metals like gold and silver may experience some loss.
Dual AI Cameras with Hawk-Eye Vision,
Boosting Precision by 60%
Two 48MP cameras in F2 Ultra boost accuracy to 0.2mm—60% improvement over single-camera systems.
AI Drives the Entire Process with One Click
From material detection to settings and preview, it simplifies every step for you.
AI Powers Every Step You Take

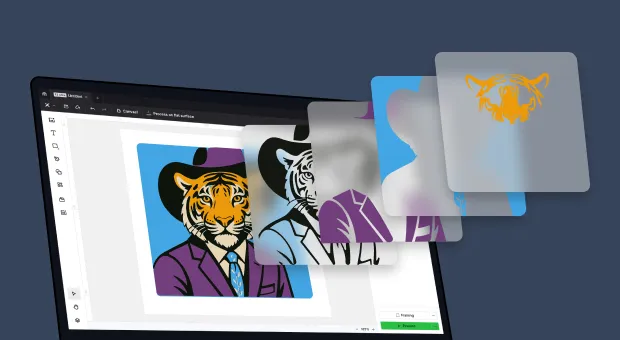

AI Color Recognition
Upload an image, and AI will automatically segment the colors, allowing you to quickly set parameters for each one.

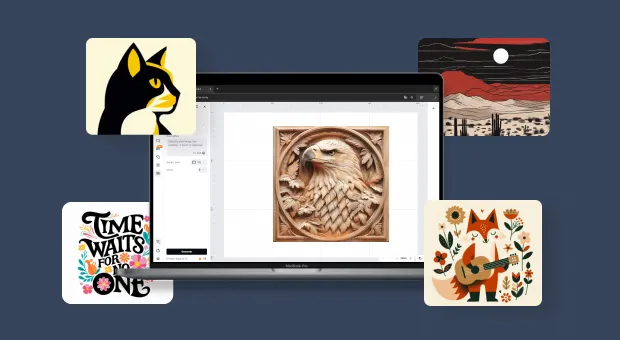

AI Design
AI image generation helps transform your words into 70+ styles within minutes, making every project truly unique.

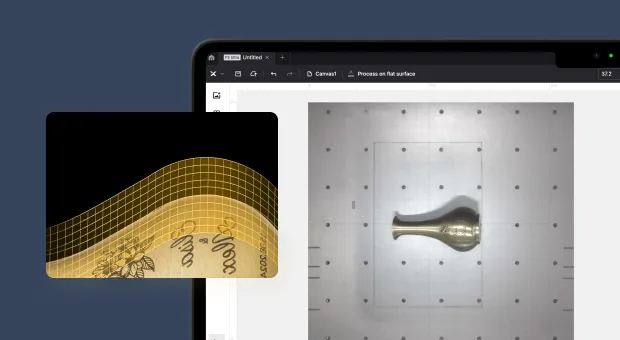

AI Modeling
Smart 3D modeling lets you engrave objects of any shape or size easily and accurately.
The Ultimate ROI Machine

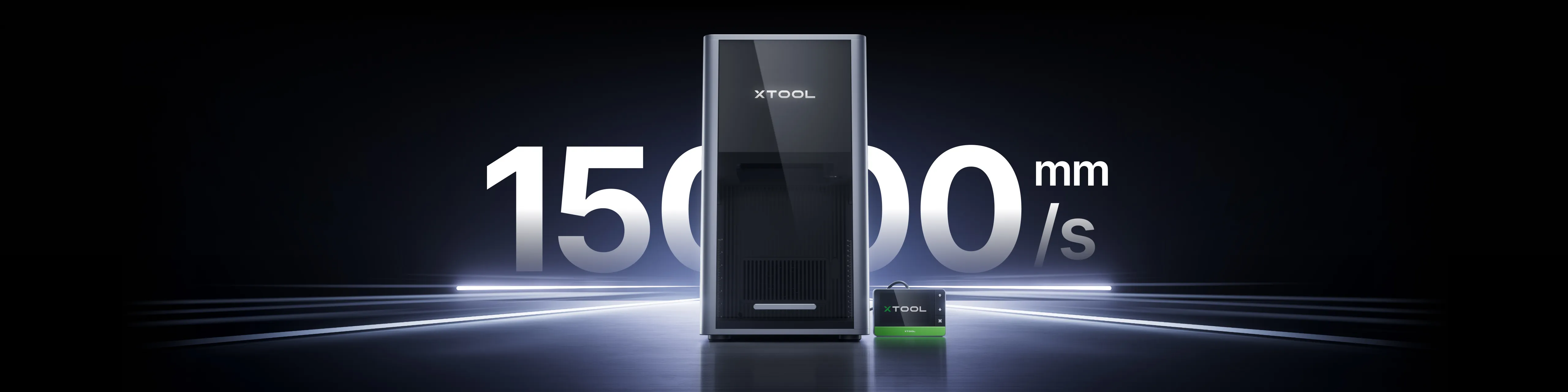

Faster, Create More in Less Time
Larger, Unlock Bigger Project
Possibilities
Up to 220 × 220 mm work area, ideal for one-off projects and detailed pieces.

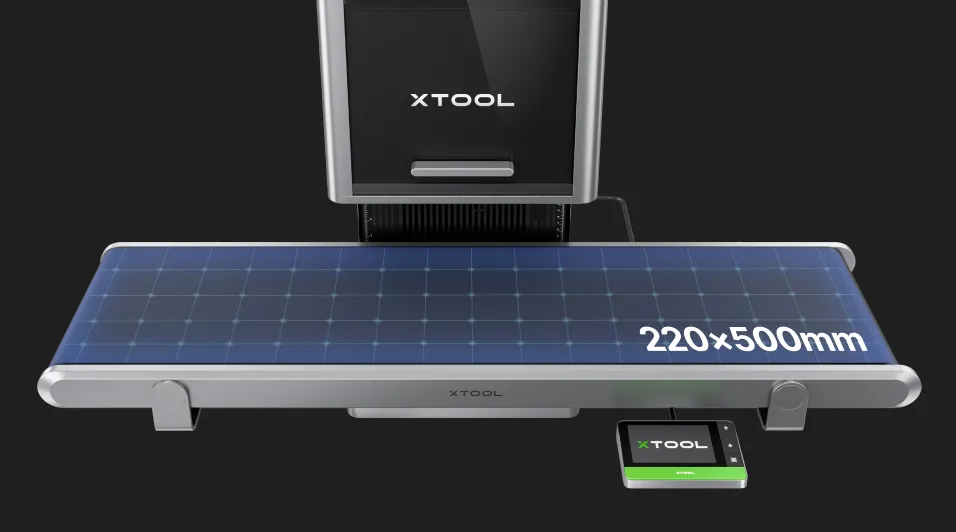

With the conveyor, the bed size expands to 220 × 500 mm, perfect for handling urgent bulk orders on your own.
Smarter, Batch Process for Industrial-
Grade Output
From layout to batch positioning, F2 Ultra streamlines your workflow with smart fill—so you're always ready for bulk orders.
Always Safe and Easy to Maintenance
The Invisible Risks You Overlook
Every engraving releases smoke and fine particles you may not notice. Inhaling them over time can silently harm your lungs and cause health issues. These risks are often overlooked in daily use.
Woodworking Smoke
Acrylic Odor
Stone Powder
Metal Dust
xTool SafetyPro™ AP2 Offers a Truly Safe
Solution With All-Round Protection
Approved by SGS for proven dust and odor elimination.
Cyclone system with 6-layer filters, purifying from large particles to harmful gases for fresh air.
Enjoy a hassle-free workflow — auto-activates to purify when gas is detected.

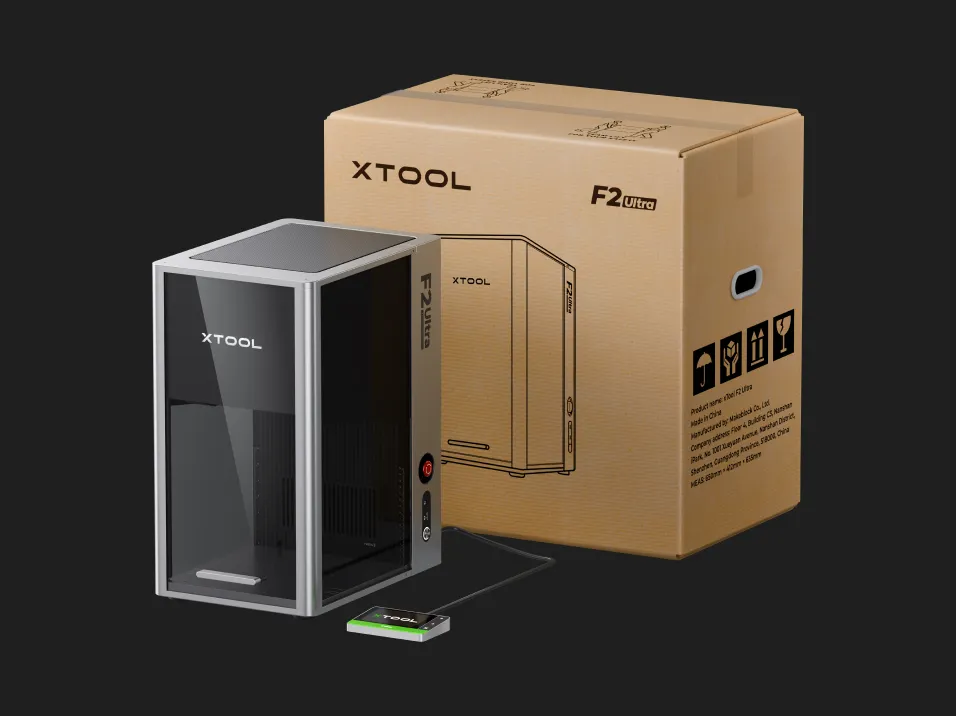

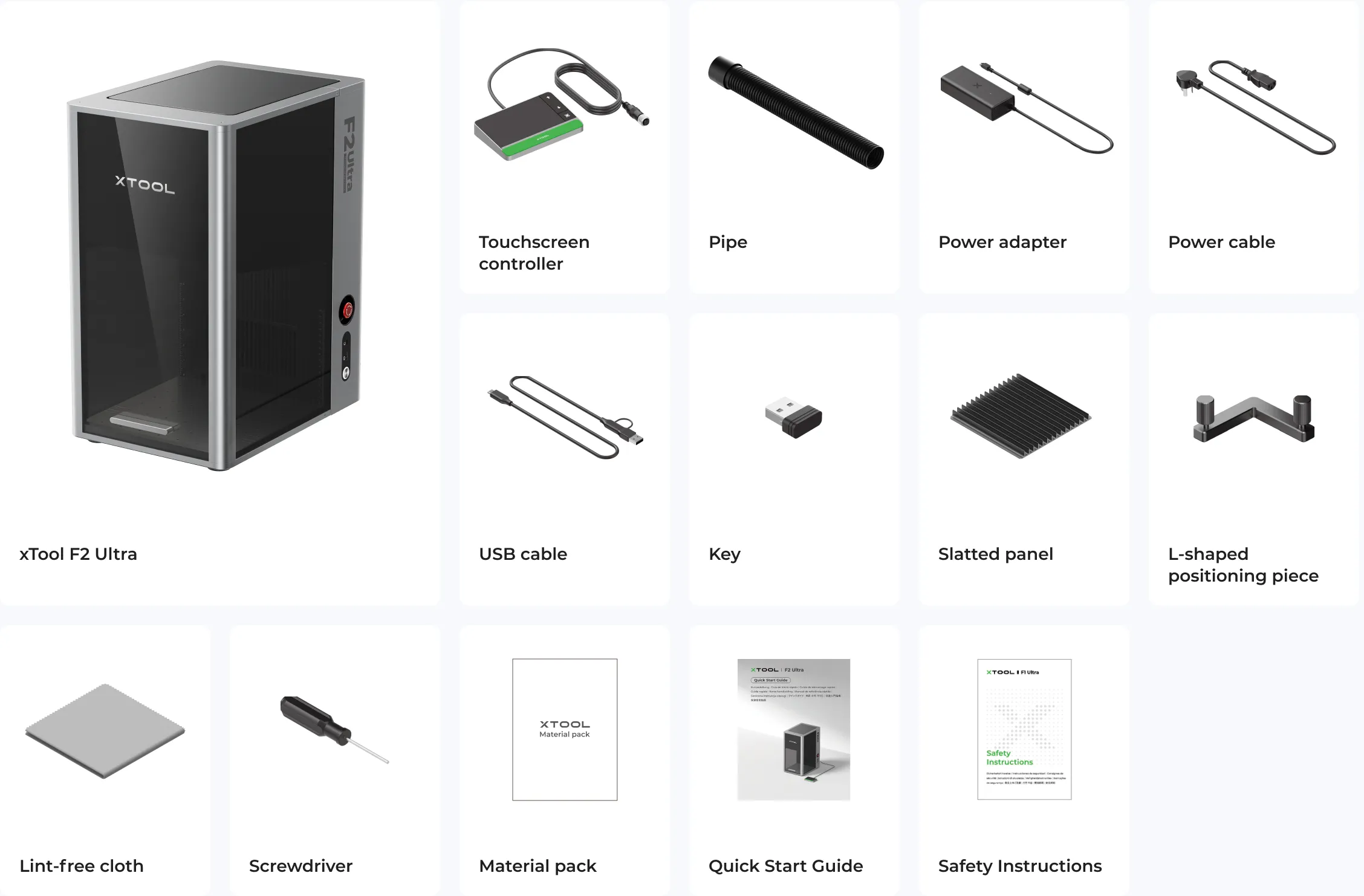

In the Box
Specifications
Processing Capacity
| Laser Type | 40W Diode + 60W MOPA Laser |
| Processing Mode | Laser Engraving
Laser Cutting |
| Supported Materials | Laser Cuttable: Diode Laser: Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic MOPA Laser: Brass, Stainless Steel, Aluminium Laser Engravable: Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal MOPA Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area | 8.6" x 8.6" (220 mm x 220 mm)
8.6" x 19.6" (with conveyor) (220 mm x 500 mm) |
| Max. Working Speed | 590.55 ips (15,000 mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.91" (23mm) in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 0.79" (20mm) in Multiple Passes |
| Max. Processing Height | 150 mm |
| Max. Rotary Engraving Diameter | 150 mm |
Smart Software
| Supported Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection Method | USB / Wi-Fi / Hotspot |
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| AImake Compatibility | Yes |
Easy Operation
| Pre-assembled | Yes |
| Built-in Camera | 48 MP Smart Camera |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Preview Method | Smart Camera Preview |
Accuracy & Precision
| Laser Spot Size | 0.08*0.1mm (40W Diode Laser)
0.03*0.03mm (60W MOPA Laser) |
| Positioning Precision | 0.2 mm |
| Ranging Precision | 0.2 mm, Camera |
| Image Resolution | N/A |
| Motion Accuracy | 0.00482 mm |
General Information
| Safety Certification | Class 4 Laser Safety |
| Product Size | 11.57" x 16.88" x 20.51" (294 mm × 429 mm × 521 mm) |
| Product Weight | 47 lb (21.6kg) |
| Max. Machine Input Power | 400 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50/60 Hz |
