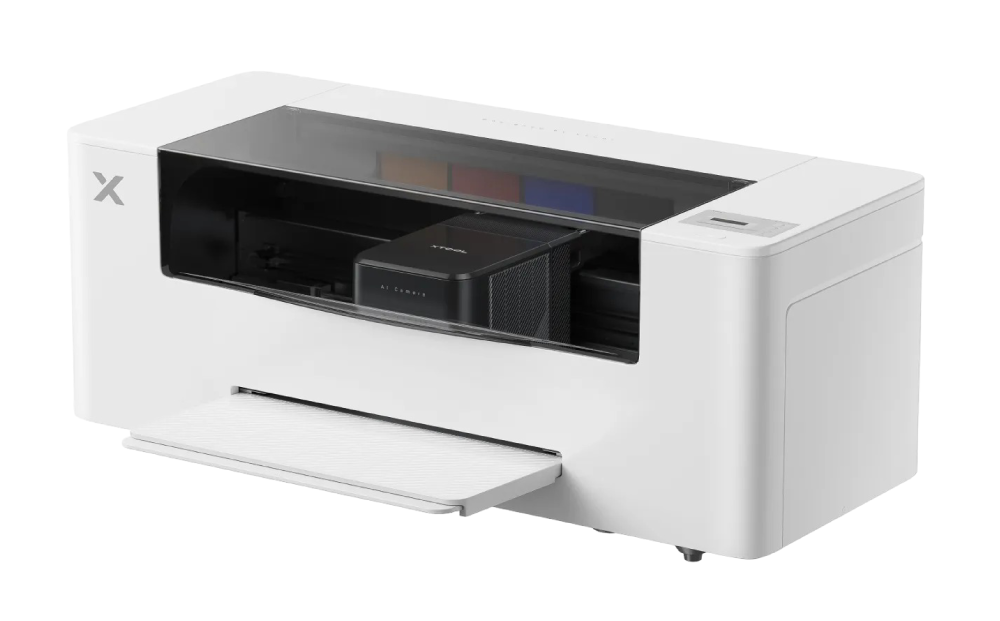

xTool Apparel Printer
Cetakan Pakaian DTF Menakjubkan dengan Satu Klik.
Ciri-ciri

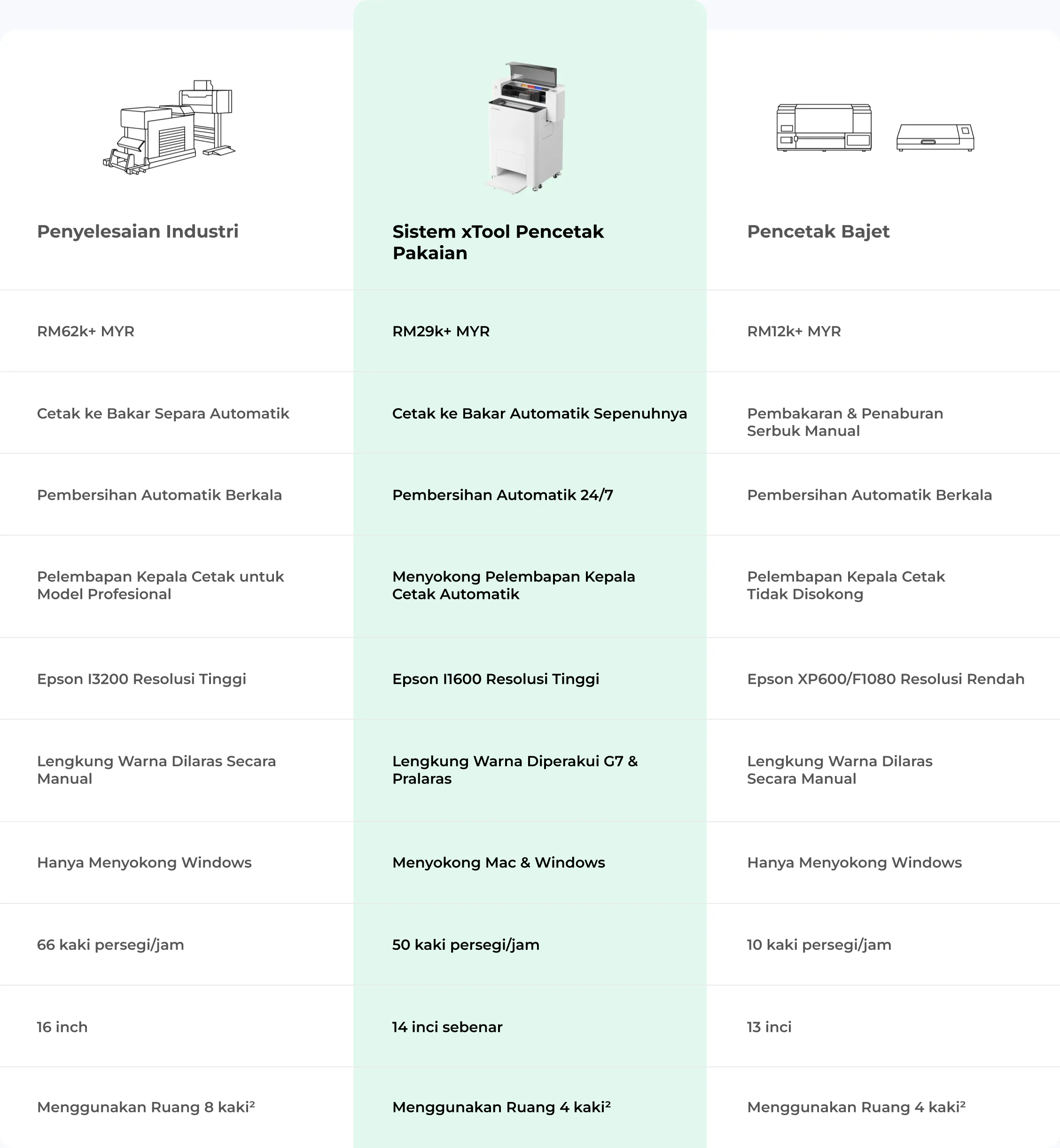

Mengapa Memilih Pencetak Pakaian xTool Berbanding Yang Lain?
Sesuaikan Pakaian Tanpa Sebarang Keluk Pembelajaran
Percetakan pakaian kini lebih mudah diakses berbanding sebelum ini. Tiada kemahiran diperlukan—sesiapa sahaja boleh mencipta dalam hanya tiga langkah mudah: Reka Bentuk, Klik dan Tekan.

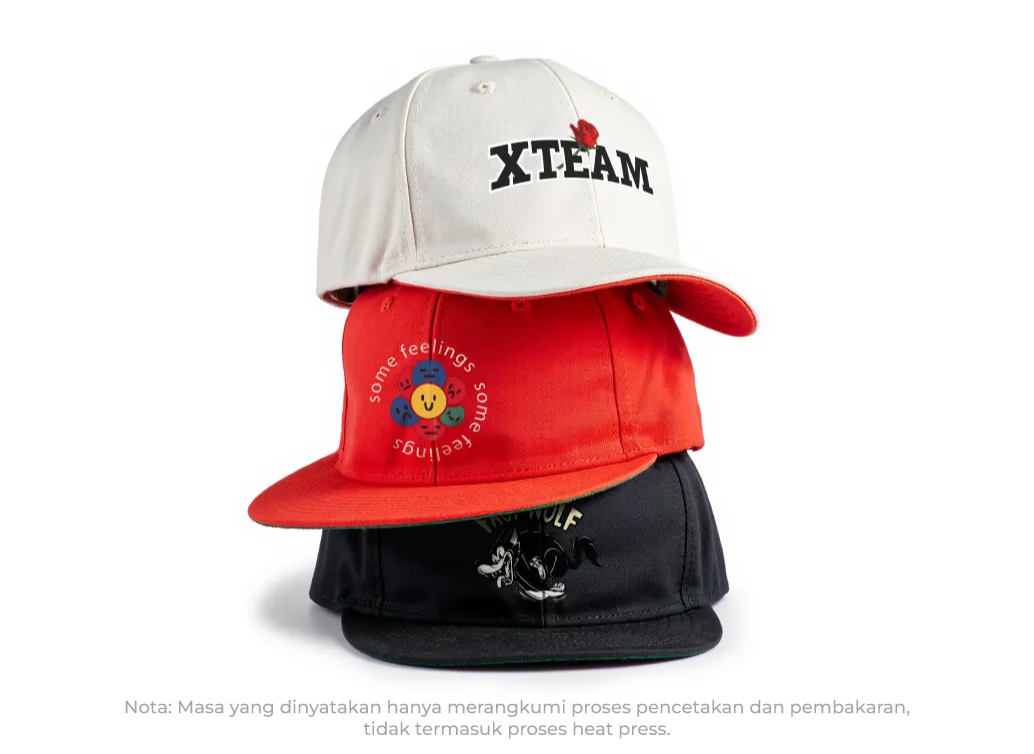

Buka Potensi Cetak & Bakar Dalam 1 Jam
Kecekapan pengeluaran yang tinggi dicapai dengan pencetak DTF berkelajuan 50 kaki persegi/jam, yang mampu menyiapkan cetakan bersaiz 14 inci dalam masa 2 minit, serta ketuhar penggoncang yang mengurangkan masa pembakaran bagi setiap helaian melalui proses pembakaran berterusan untuk berbilang helaian.
Industry's Latest Dual Print Head Technology
With Epson I1600 dual print heads, your designs come to life with HD resolution. The two heads work together seamlessly, with one delivering vibrant colors and the other applying white ink to ensure flawless color replication, even on dark fabrics.
Excel in Every Aspect
This exceptional level of detail is made possible by the Epson I1600 printheads, which feature a high-density array (NPI 300) of nozzles with ultra-fine ink drops (3.8 pL).
HD printing is powered by Epson unique PrecisionCore technology, using MEMS and piezo elements for a high-density nozzle array to boost clarity.
Premium Print Head Used on
Professional-Grade Printers
 xTool Apparel Printer | Others | |
|---|---|---|
| Print Head | Epson I1600 ×2 | Epson F1080 / Epson XP600 ×1 |
| Generation | 3rd Generation Print Head- Released in 2023 | 2nd Generation Print Head- Released in 2012 |
| Resolution | HD Definition- NPI 300 Supported by PrecisionCore Tech- 720 × 1800 DPI- Minimum dot volume 3.8pl | Low Definition- NPI 180- 720 × 1080 DPI- Minimum dot volume 4.5pl |
| Efficiency/Speed | 1.5 Times Faster- A total of 1600 nozzles for a single head- Ejects 21,600 times per second | Slower Efficiency- A total of 1080 nozzles for a single head- Ejects 11,520 times per second |
| Lifespan | 2X Longer Lifespan- Dual head less prone to clogging | Shorter Lifespan- Prone to clogging and ink crossover |
SmartCycle™ Maintenance System
Guards Your Machine 24/7
With full lifecycle automatic maintenance, your printer stays in optimal condition whenever it is plugged in. Utilizing usage data, internal humidity, and other real-time machine metrics, the system automatically activates maintenance, minimizing print head clogs and ensuring consistent, high-quality printing.
Professional-Grade Calibration in Just a Few Clicks
With a 16MP AI camera and intelligent recognition, automatic print head calibration eliminates the need for tedious manual adjustments. This ensures accurate reproduction of designs and colors, preventing color overlap and image distortion.
Routine Nozzle Clogging Check and Compensation
The printer performs regular checks on the nozzles by printing test patterns. Our AI camera then analyzes the output and initiates print head cleaning to resolve any issues. If a nozzle remains clogged after cleaning, the printer automatically compensates with unclogged nozzles during printing, ensuring print quality and extending the lifespan of the printhead.
All-in-One Software,
Print with Ease
Compatible with both Windows and Mac, xTool Creative Space makes DTF printing as simple as drag-and-print.
Innovations in Detail

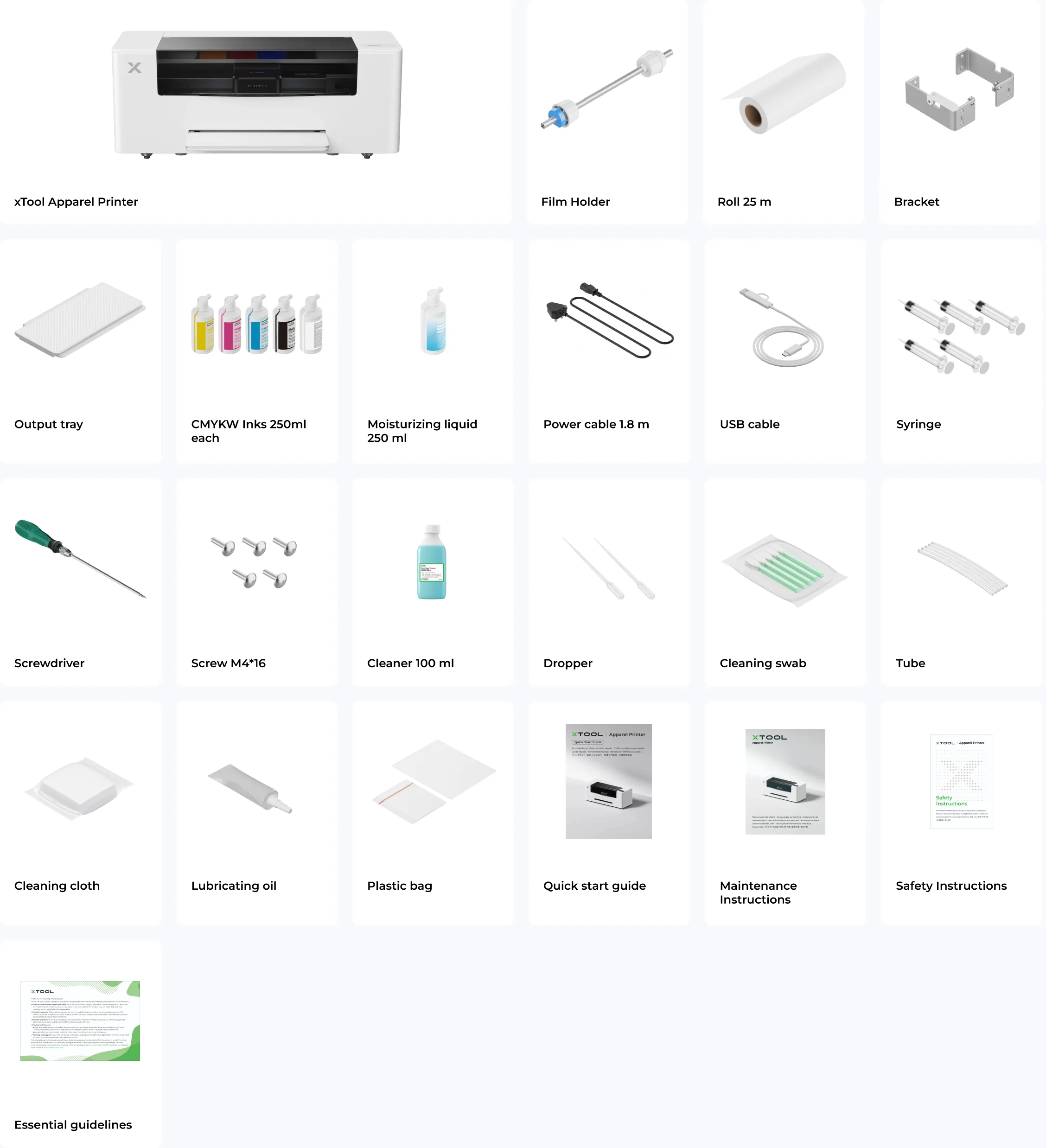

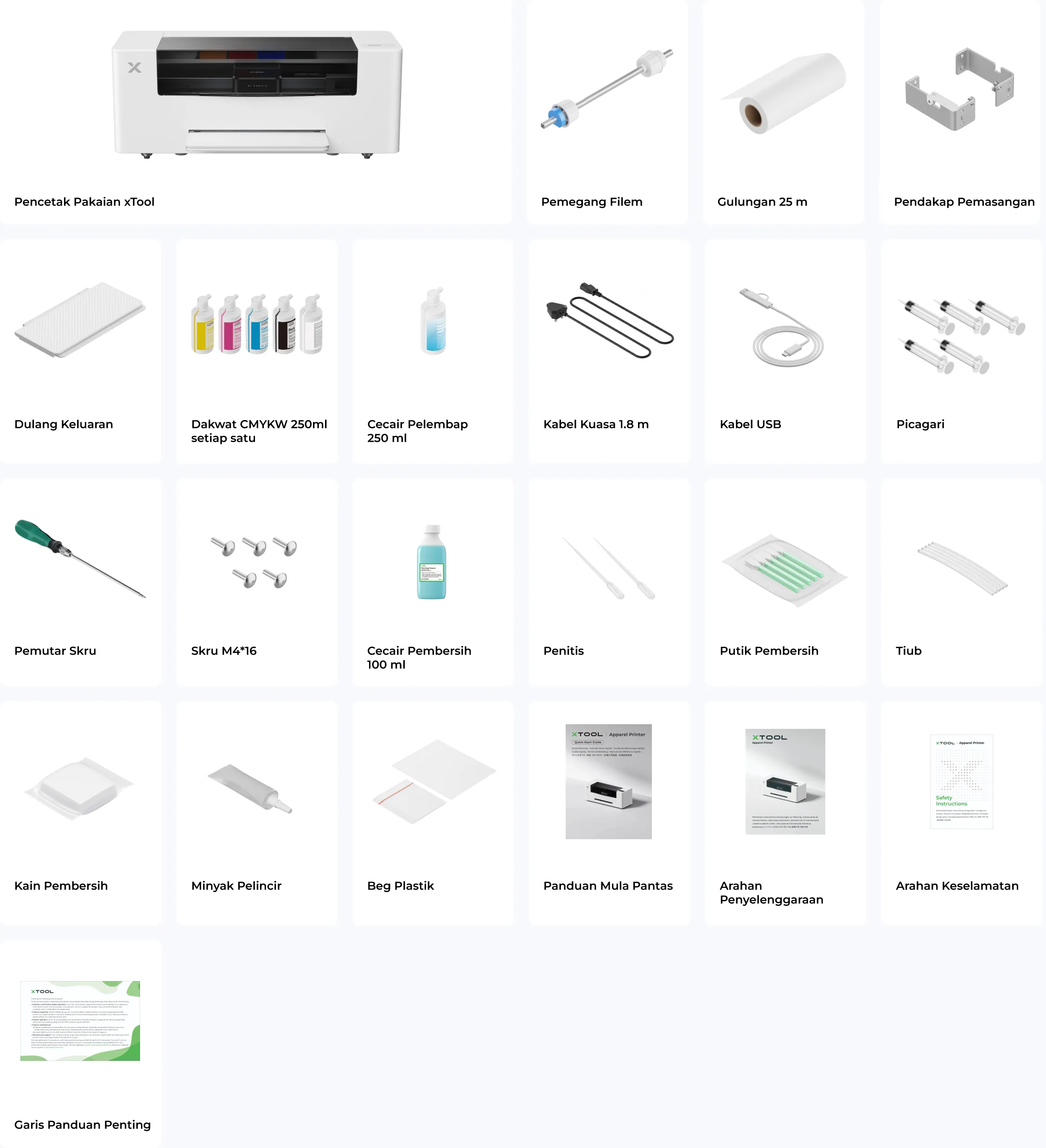

In the Box
Specifications
Processing Dimensions
| Printer Solo Size | 35.63" x 14.37" x 14.03" (905 mm x 365 mm x 356.5 mm) |
| Printer Solo Weight | 61.73 lbs (34 kg) |
| Print Width | 14" (356 mm) |
| Maximum Print Area | 14" x 18" (356mm x 460mm) |
Printing Capabilities
| Materials Application | All fabrics, including cotton, polyester, denim, canvas, spandex, nylon, and more |
| Print Head | Epson I1600 Dual Print Head |
| Printing Resolution | 720 x 1800 DPI |
| Minimum Ink Drop Size | 3.8 pL |
| Printing Speed | Up to 50 sq ft/hr (720×1200 DPI) |
| Printing Mode | Single Sheet-Fed |
| Printing Color | CMYK+WWWW |
Software and Maintenance
| Supported Software | xTool Creative Space (Includes AI-Powered Design Generator, RIP, Auto Nesting, Printing Layout, Machine Control, and more) |
| Software Compatibility | Mac, Windows Supported |
| Calibration | AI 16MP Camera Auto Calibration |
| Maintenance | Auto Printheads Cleaning
Auto Ink Stri and Circulation / WIMS (White Ink Management System) Auto Refill Printheads Moisturizer App Remote Monitoring |
General
| Printer Voltage | AC 100V-120V / 220V-240V |
| Printer Frequency | 50 Hz / 60 Hz |
| Printer Power Consumption | 350W |
| Printer Sleep Mode Power Consumption | 23.5W, approximately 0.5 kWh per day |
| Operating Temperature | 59-89°F / 15-30°C (68-89°F / 20-30°C Recommended) |
| Operating Humidity | 30%-80% RH (50%-80% RH Recommended) |
