xTool Apparel Printer
Stunning DTF Apparel Printing in One-Click.
Features

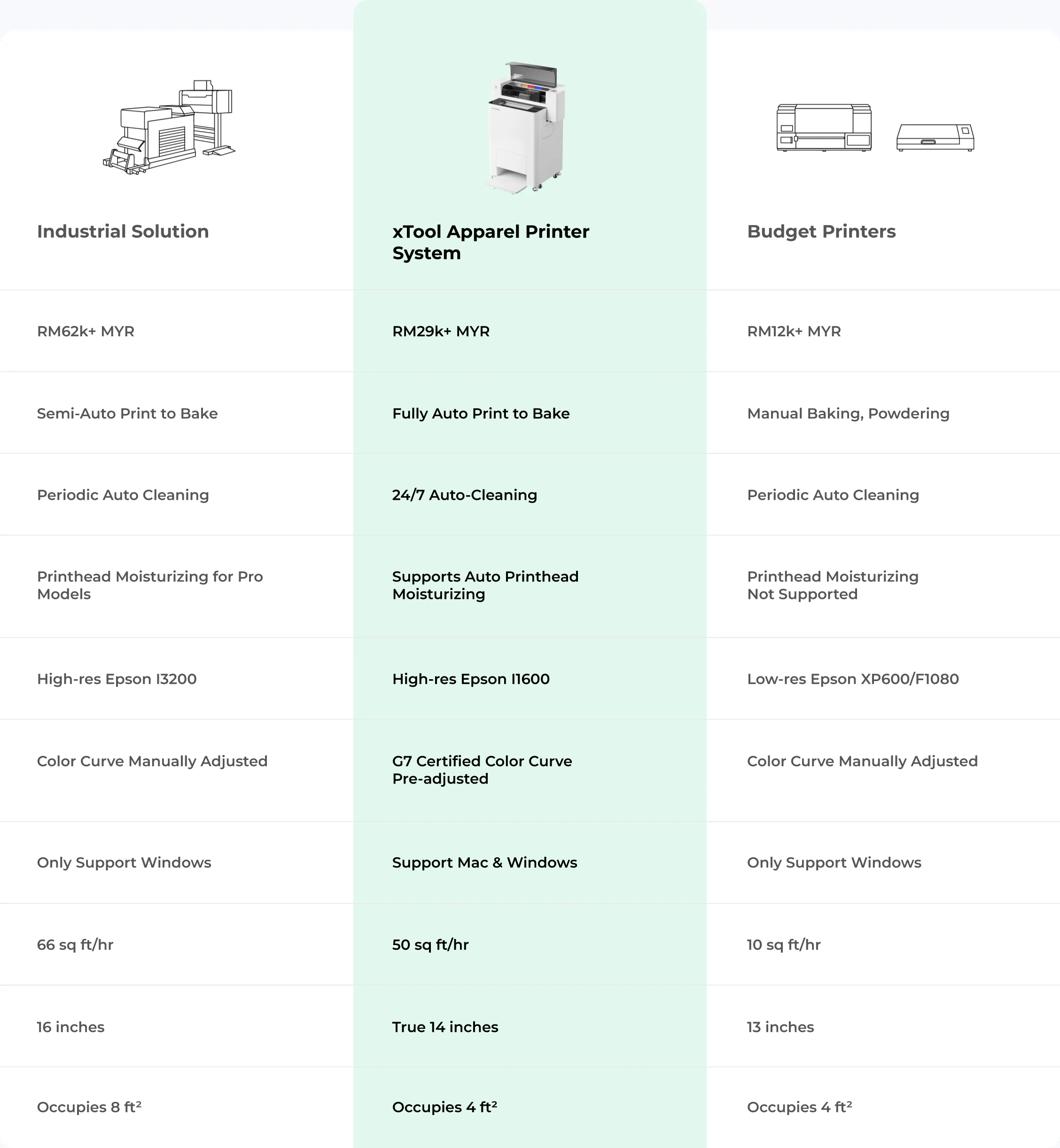

Why Choose xTool Apparel Printer over Others?
Customize Apparel with Zero Learning Curve
Apparel printing has never been more accessible. No skills are required—anyone can create in just three simple steps: Design, Click, and Press.
Unlock the 1-Hour Print & Bake Potential
High production efficiency is achieved with the 50 sq ft/hr DTF printer, completing 14-inch prints in 2 minutes, and the shaker oven, which reduces baking time per sheet with continuous multi-sheet baking.
Industry's Latest Dual Print Head Technology
With Epson I1600 dual print heads, your designs come to life with HD resolution. The two heads work together seamlessly, with one delivering vibrant colors and the other applying white ink to ensure flawless color replication, even on dark fabrics.
Excel in Every Aspect
This exceptional level of detail is made possible by the Epson I1600 printheads, which feature a high-density array (NPI 300) of nozzles with ultra-fine ink drops (3.8 pL).
HD printing is powered by Epson unique PrecisionCore technology, using MEMS and piezo elements for a high-density nozzle array to boost clarity.
Premium Print Head Used on
Professional-Grade Printers
 xTool Apparel Printer | Others | |
|---|---|---|
| Print Head | Epson I1600 ×2 | Epson F1080 / Epson XP600 ×1 |
| Generation | 3rd Generation Print Head- Released in 2023 | 2nd Generation Print Head- Released in 2012 |
| Resolution | HD Definition- NPI 300 Supported by PrecisionCore Tech- 720 × 1800 DPI- Minimum dot volume 3.8pl | Low Definition- NPI 180- 720 × 1080 DPI- Minimum dot volume 4.5pl |
| Efficiency/Speed | 1.5 Times Faster- A total of 1600 nozzles for a single head- Ejects 21,600 times per second | Slower Efficiency- A total of 1080 nozzles for a single head- Ejects 11,520 times per second |
| Lifespan | 2X Longer Lifespan- Dual head less prone to clogging | Shorter Lifespan- Prone to clogging and ink crossover |
SmartCycle™ Maintenance System
Guards Your Machine 24/7
With full lifecycle automatic maintenance, your printer stays in optimal condition whenever it is plugged in. Utilizing usage data, internal humidity, and other real-time machine metrics, the system automatically activates maintenance, minimizing print head clogs and ensuring consistent, high-quality printing.
Professional-Grade Calibration in Just a Few Clicks
With a 16MP AI camera and intelligent recognition, automatic print head calibration eliminates the need for tedious manual adjustments. This ensures accurate reproduction of designs and colors, preventing color overlap and image distortion.
Routine Nozzle Clogging Check and Compensation
The printer performs regular checks on the nozzles by printing test patterns. Our AI camera then analyzes the output and initiates print head cleaning to resolve any issues. If a nozzle remains clogged after cleaning, the printer automatically compensates with unclogged nozzles during printing, ensuring print quality and extending the lifespan of the printhead.
All-in-One Software,
Print with Ease
Compatible with both Windows and Mac, xTool Creative Space makes DTF printing as simple as drag-and-print.
Innovations in Detail

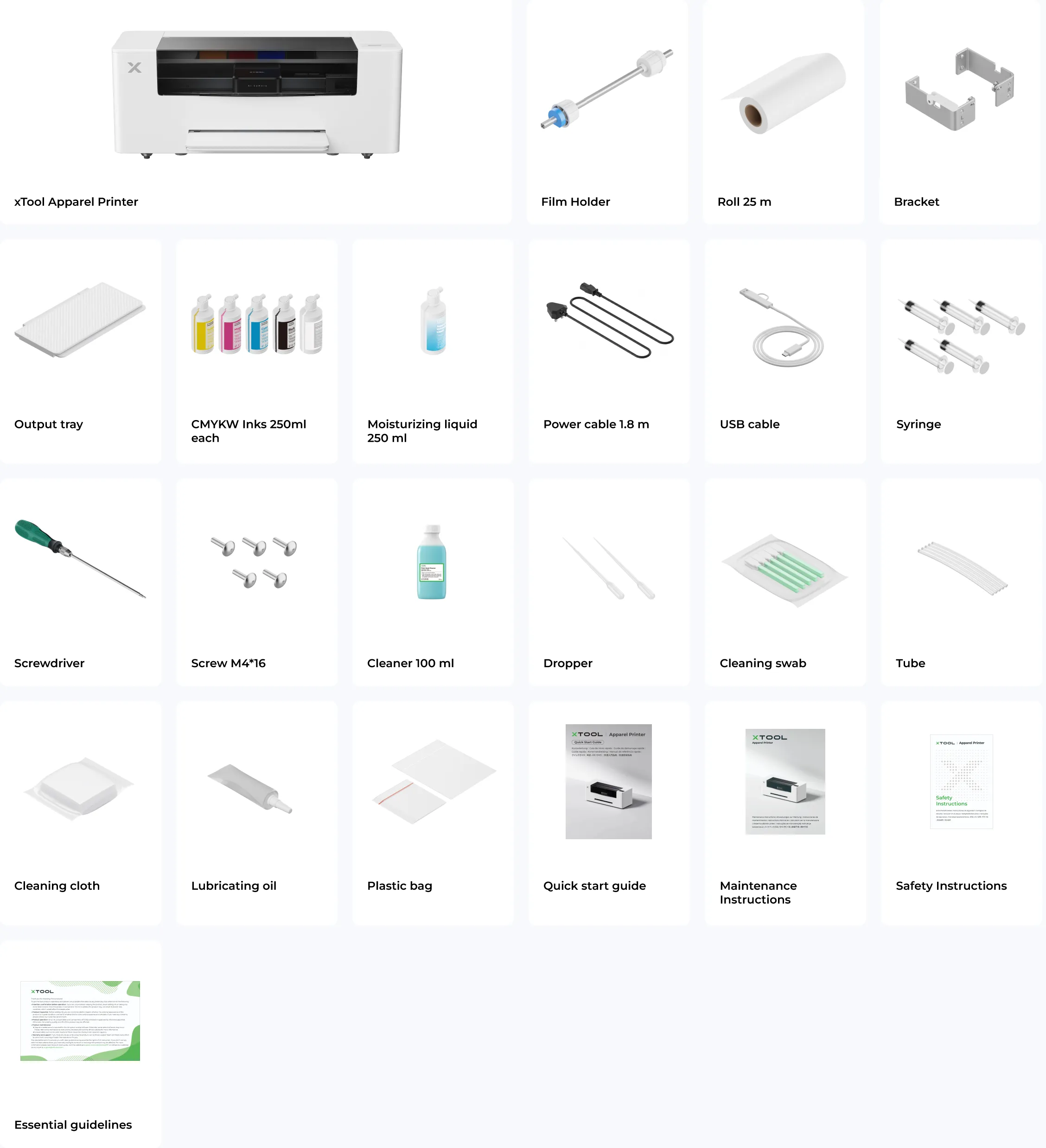

In the Box
Specifications
Processing Dimensions
| Printer Solo Size | 35.63" x 14.37" x 14.03" (905 mm x 365 mm x 356.5 mm) |
| Printer Solo Weight | 61.73 lbs (34 kg) |
| Print Width | 14" (356 mm) |
| Maximum Print Area | 14" x 18" (356mm x 460mm) |
Printing Capabilities
| Materials Application | All fabrics, including cotton, polyester, denim, canvas, spandex, nylon, and more |
| Print Head | Epson I1600 Dual Print Head |
| Printing Resolution | 720 x 1800 DPI |
| Minimum Ink Drop Size | 3.8 pL |
| Printing Speed | Up to 50 sq ft/hr (720×1200 DPI) |
| Printing Mode | Single Sheet-Fed |
| Printing Color | CMYK+WWWW |
Software and Maintenance
| Supported Software | xTool Creative Space (Includes AI-Powered Design Generator, RIP, Auto Nesting, Printing Layout, Machine Control, and more) |
| Software Compatibility | Mac, Windows Supported |
| Calibration | AI 16MP Camera Auto Calibration |
| Maintenance | Auto Printheads Cleaning
Auto Ink Stri and Circulation / WIMS (White Ink Management System) Auto Refill Printheads Moisturizer App Remote Monitoring |
General
| Printer Voltage | AC 100V-120V / 220V-240V |
| Printer Frequency | 50 Hz / 60 Hz |
| Printer Power Consumption | 350W |
| Printer Sleep Mode Power Consumption | 23.5W, approximately 0.5 kWh per day |
| Operating Temperature | 59-89°F / 15-30°C (68-89°F / 20-30°C Recommended) |
| Operating Humidity | 30%-80% RH (50%-80% RH Recommended) |
