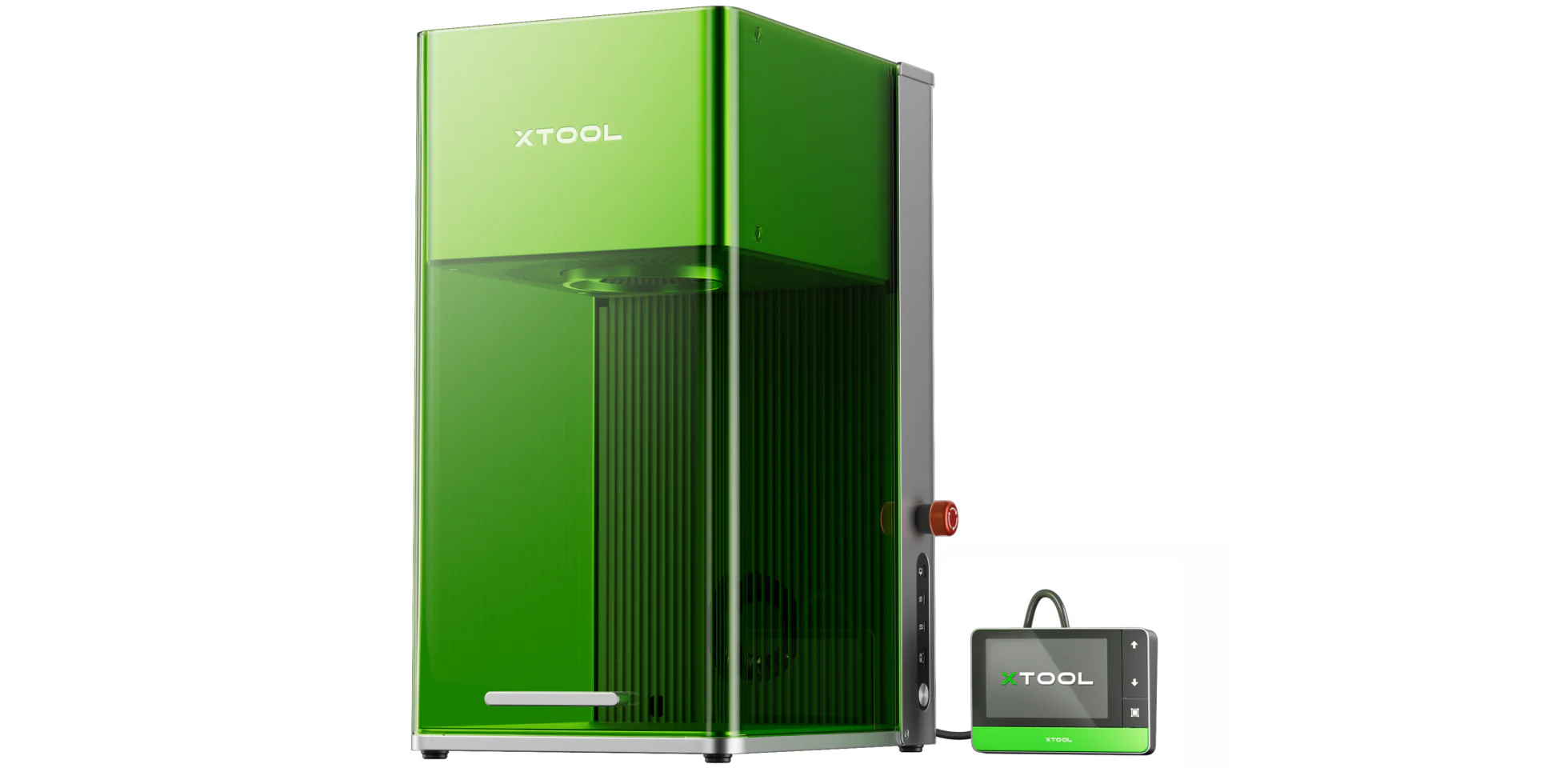

xTool F1 Ultra
World's First 20W Fiber & 20W Diode Laser Engraver
The Ultimate Production Solution For Everyone
Deep-engrave
Jewelry
Create stunning jewelry with deep metal engraving, embossing, thin metal cutting.
Onsite Customizing
In just 30 seconds, F1 Ultra can earn extra by customization.
Make All Types of Gifts
Working
on over 300 materials, F1 Ultra can satisfy all of your gift/souvenir ideas.

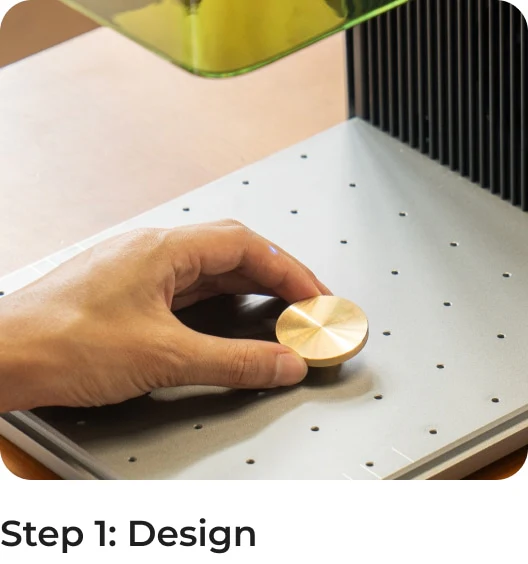

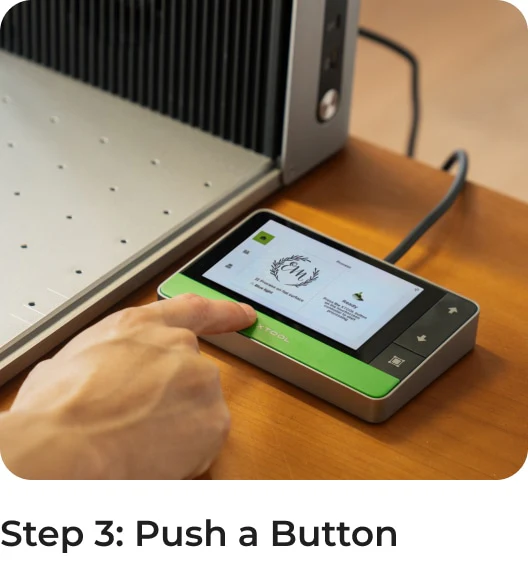

Create like a Pro in Just 3 Steps!

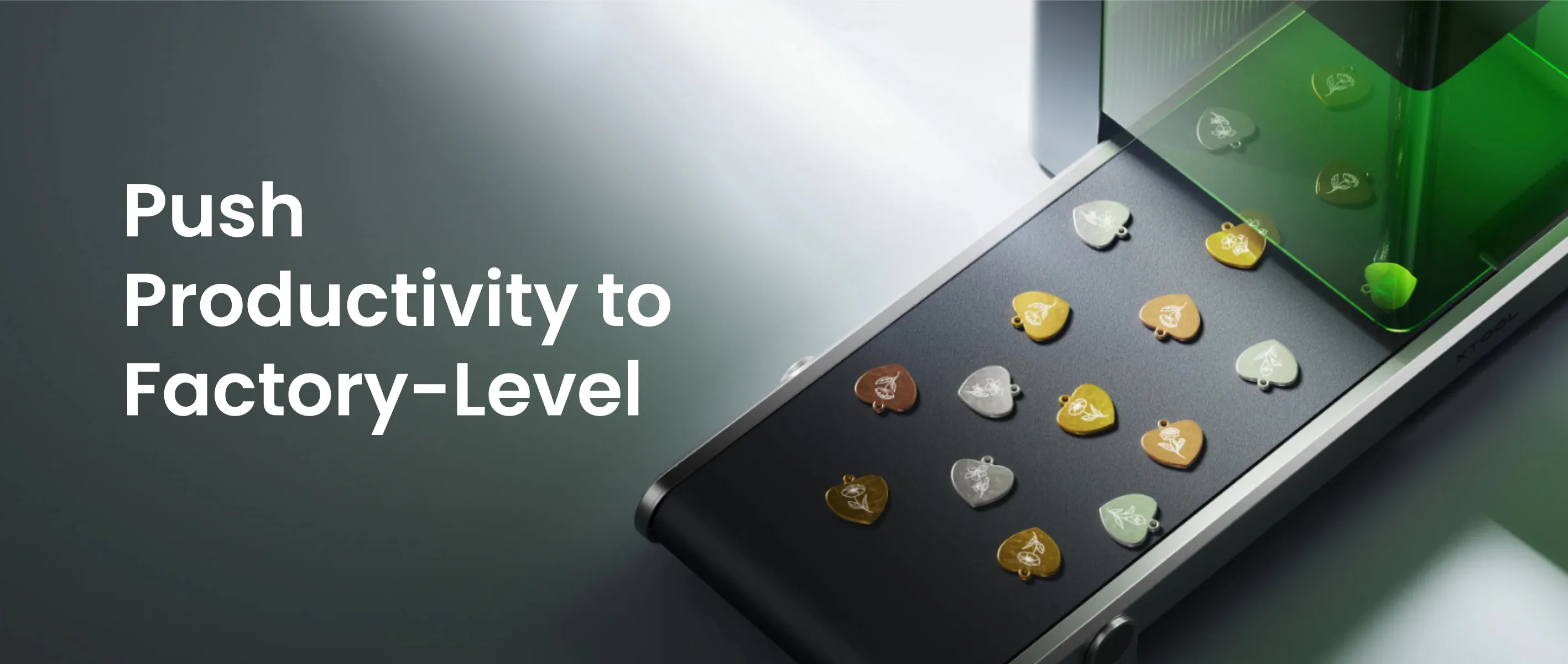

Auto Streamline™ Your Wild Production
One can effortlessly handle large quantities of production at times when large orders are in rush.
Camera Made Production Easy
Just place the materials on the conveyor, and let ultra do the rest. Camera can automatically identify the shape of the materials while the xTool Creative Space software helps engrave patterns accurately to every piece.
Work on Almost All Materials
World's First 20W Fiber & 20W Diode Dual Laser
We combined the abilities of two lasers in the F1 Ultra: a fiber laser for its exceptional metal engraving performance and a blue diode laser for engraving the most common materials.
20W Power Beast, Make Your Masterpiece
With a 20W fiber laser and a 20W diode laser, F1 Ultra is potent enough for deep engraving, embossing reliefing and cutting on metals, wood, acrylic, etc.
We Stress Test Every Machine for Whatever You Need.
View All TestsSpecifications | |
|---|---|
| Laser Type | 20W Diode Laser + 20W Fiber Laser |
| Processing Mode | Laser Engraving
Laser Cutting |
| Supported Materials | Laser Cuttable:
Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic Fiber Laser: Brass, Stainless Steel, Aluminum Laser Engravable: Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal Fiber Laser: Stainless Steel, Aluminum, Brass Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area | 8.6" x 8.6" (220 mm x 220 mm)
8.6" x 19.6" (with conveyor) (220 mm x 500 mm) |
| Max. Working Speed | 10000mm/s |
| Max. Laser Cutting Capacity (Bassword) | 15 mm in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 12 mm in Multiple Passes |
| Max. Processing Height | 145 mm |
| Max. Rotary Engraving Diameter | 145 mm |
Smart Software | |
|---|---|
| Supported Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection Method | USB / Wi-Fi / IP / Hotspot
|
| Supported Files | SVG / DXF / JPG / JPEG / PNG / BMP / TIF |
| AImake Compatibility | Yes |
Easy Operation | |
|---|---|
| Pre-assembled | Yes |
| Built-in Camera | 16 MP Smart Camera |
| Positioning Method | Camera Positioning
|
| Focus Mode | Autofocus |
| Preview Method | Smart Camera Preview
High-speed Light Live Preview |
Accuracy & Precision | |
|---|---|
| Laser Spot Size | 0.08*0.1mm (20W Diode Laser)
0.03*0.03mm (20W Fiber Laser) |
| Positioning Precision | N/A |
| Ranging Precision | 0.5 mm, Camera
|
| Image Resolution | N/A |
| Motion Accuracy | 0.00482 mm |
General Information | |
|---|---|
| Safety Certification | Class 4 Laser Safety |
| Product Size | 10.75" x 14.69" x 19.37" (273 mm x 373 mm x 492 mm) |
| Product Weight | 32.4 lb (14.7kg)
|
| Max. Machine Input Power | 250 W - 275 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50/60 Hz |
